Details :
| Stock No | 1133-E175 |

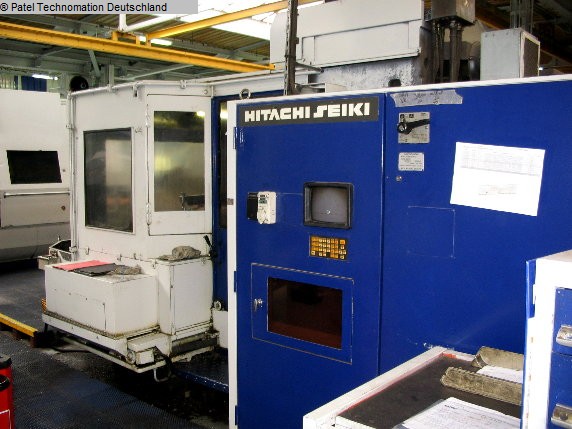

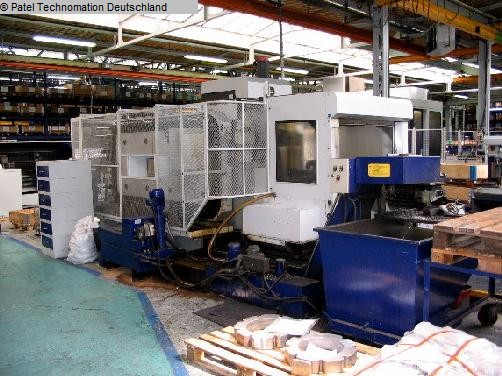

| Machinetype | Machining Center - Horizontal |
| Make | HITACHI |
| Type | HG 500 |
| Newin | 1988 |
| Control | CNC |
| Location | Deutschland |
| Country of origin | Japan |
| Term of delivery | immediately |
| Quotation | free loaded Truck |
| Price | Auf Anfrage EUR |
Technical Details :
| x-travel | 710 mm |
| y-travel | 680 mm |
| z-travel | 600 mm |
| control | Fanuc 11M |
| size of pallet | 500 x 500 mm |
| workpiece dia. | D = 760 mm |
| feed speeds | 1 - 20000 mm/min |
| rapid speed | 20 m/min |
| B - Axis | 1° ° |
| workpiece weight | 800 kg |
| spindle turning speed range | 4500 U/min |
| power capacity | 22/18,5 kW |
| spindle taper | BT 50 |
| tool magazin: | 60 |
| max. tool weight | 8 kg |
| max. tool diameter | 75 mm |
| max. tool length | 470 mm |
| weight of the machine ca. | 16 t |
| dimensions of the machine ca. | 5,7 x 2,75 x 3,0 m |
Other Details :
- With complete documentation
