Details :
| Stock No | 1133-H150 |
| Machinetype | Machining Center -Horizontal |
| Make | HELLER |
| Type | BEA 3 |
| Newin | 1990 |
| Control | CNC |
| Location | Belgian |
| Country of origin | |
| Term of delivery | immediate |
| Quotation | Free loaded on Truck/Flat |
| Price | 15000.00 EUR |
Technical Details :
| travel -x axis | 1250 mm |
| travel -y axis | 800 mm |
| travel -z axis | 1000 mm |
| table surface area | 800 x 800 mm |
| control | Uni-Pro 80 C |
| workpiece weight | 1200 kg |
| working spindle speed range | 45-4000 U/min |
| tool adaptor | SK 50 |
| feed | 1-10 m/min |
| rapid traverse | 15 m/min |
| palett changer - no. of dockets | 2 |
| palett changer - no. of paletts | 2 |
| electrics - voltage/frequency | 380/50 V/Hz |
| power requirement | 24 kW |
| weight of the machine ca. | 25 t |
| dimensions of the machine ca. | 6 x 3,5 x 3,4 m |
| tool piece magazine with | 40 |
Other Details :
- UniPro 80C; Pallet 800x800
- Serial No 41129,
- Rebuilt 2005,

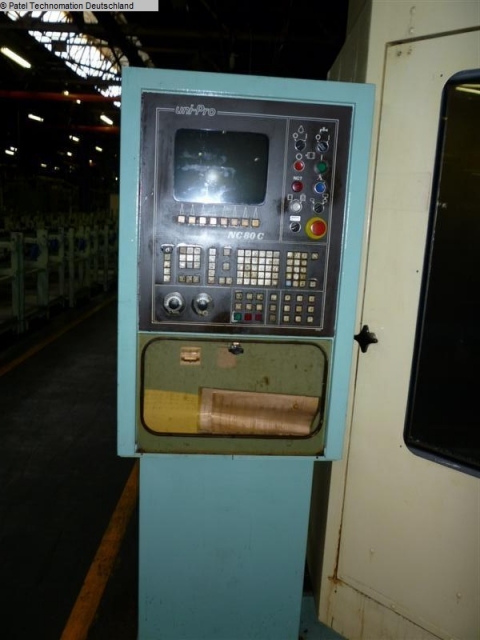

- HELLER Model BEA3 with Siemens NC80C Uni-Pro Control,

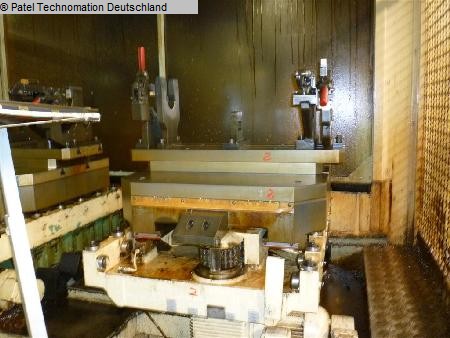

- Pallet Size 800 x 800mm,
- 360 x 1 degree table indexing,
- 40ATC, Swarf Conveyor,
- X= 1250,
- Y= 800,
- Z=1000 mm,
- Speeds 45-4000 Rpm,
- Motor 24 Kw
