Details :
| Stock No | 1133-E182 |

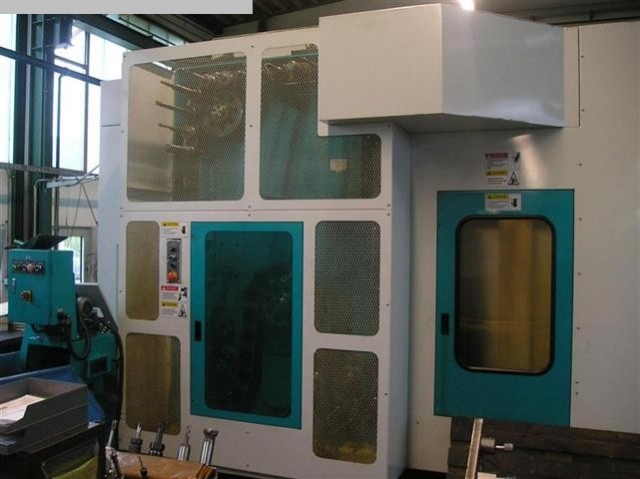

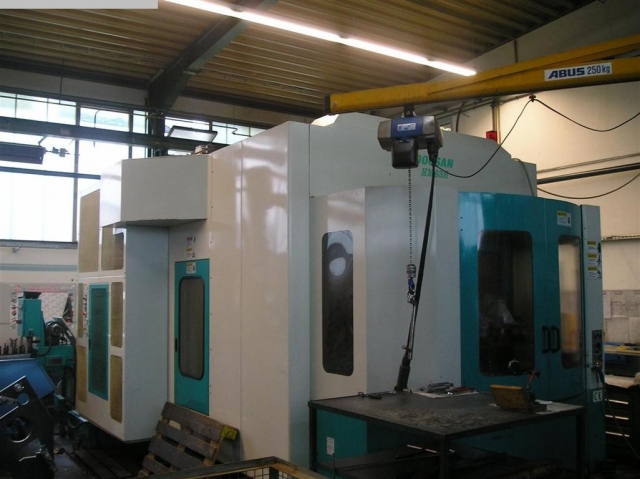

| Machinetype | Machining Center - Horizontal |
| Make | DAEWOO |
| Type | HM 63-M |
| Newin | 2003 |
| Control | CNC |
| Location | Deutschland |
| Country of origin | Korea |
| Term of delivery | at Immidiate |
| Quotation | Free loaded in Container/Flat |
| Price | Auf Anfrage EUR |
Technical Details :
| x-travel | 1050 mm |
| y-travel | 940 mm |
| z-travel | 1070 mm |

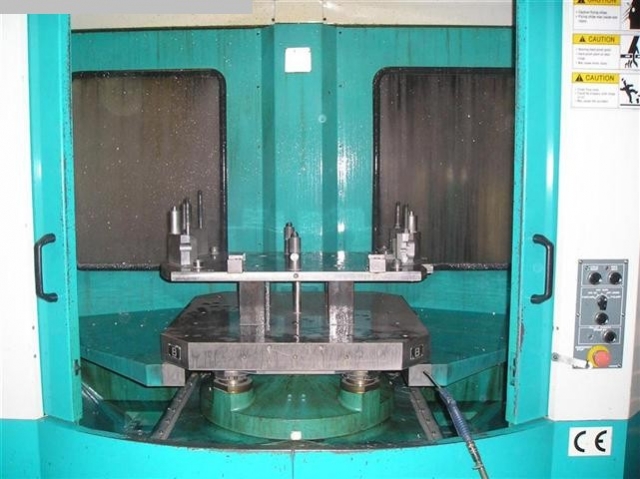

| size of pallet | 630x630 mm |
| type of pallet-changer | twin |
| table - indexing | 0,0001° |
| number of tools | 60 |
| spindle taper | ISO50 |
| tool taper | BT50 |
| weight of tools max. | 25 kg |

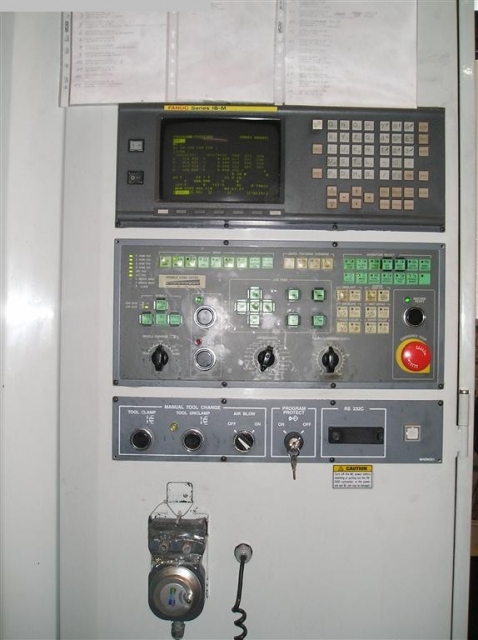

| control | FANUC 18M |
| spindle motor | 30/22 kW |
| weight of the machine ca. | 18 t |
Other Details :
- Fanuc 18M; 630x630 Pallet

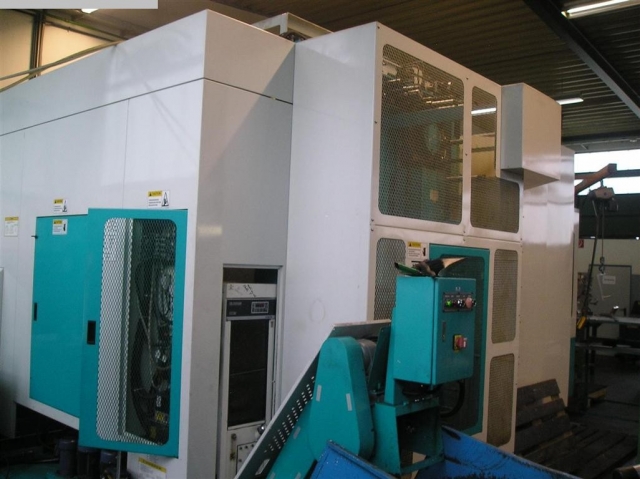

- With chip conveyor
- With spindle through coolant
- With extra set of pallets size: 800x800 mm
