Details :
| Stock No | 1133-H165 |
| Machinetype | Machining Center - Horizontal |
| Make | DAEWOO |
| Type | ACE H80 |
| Newin | 1996 |
| Control | CNC |
| Location | India - Rajkot |
| Country of origin | Korea |
| Term of delivery | Immediate |
| Quotation | Free loaded in Container/Flat |
| Price | 0.00 lkR |
Technical Details :
| x-travel | 1250 mm |
| y-travel | 1000 mm |
| z-travel | 1000 mm |
| Number of pallets | 2 way |
| size of pallet | 800 x 800 mm |
| feeds | 5000 mm/min |
| rapid traverse | 15000 mm/min |

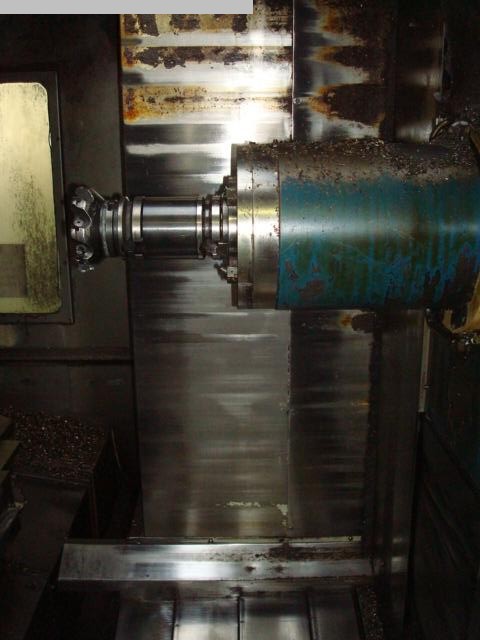

| spindle taper | BT 50 |
| spindle motor | 15 / 18,5 kW |
| spindle turning speed range | 20 - 4500 U/min |
| Tool magazine positions | 90 fach |
| tool diameter | 135 mm |
| wotkpiece diameter with 2 vacant positions | 250 mm |
| tool length - max. | 550 mm |
| weight of tools max. | 25 kg |
| tool changing time | 2,5 sec |
| distance spindle center to table | 75 - 1075 mm |
| Distance Spindle nose to Table center | 200 - 1200 |
| table load capacity | 2000 kp |
| table - indexing | 1° |
| Control | Fanuc OM |
| total power requirement | 63 kVA |
| weight of the machine ca. | 20000 t |
| dimensions of the machine ca. | 7060 x 4190 mm |
Other Details :
- Fanuc OM; Pallet 800x800

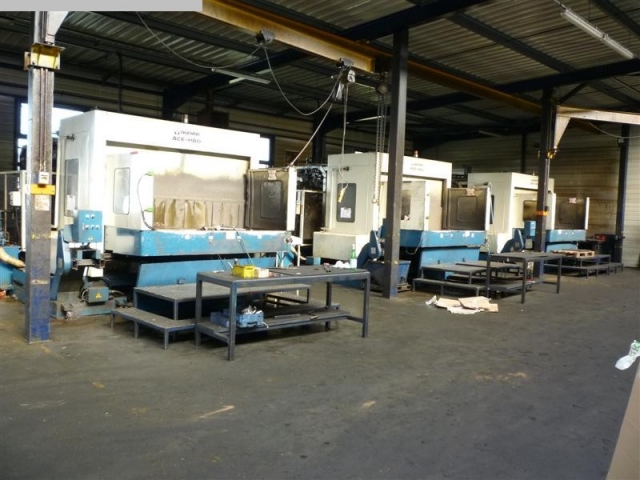

- 4 Pcs. identical machines
- 2 pcs. YOM 1995 & 2 pcs. YOM 1996

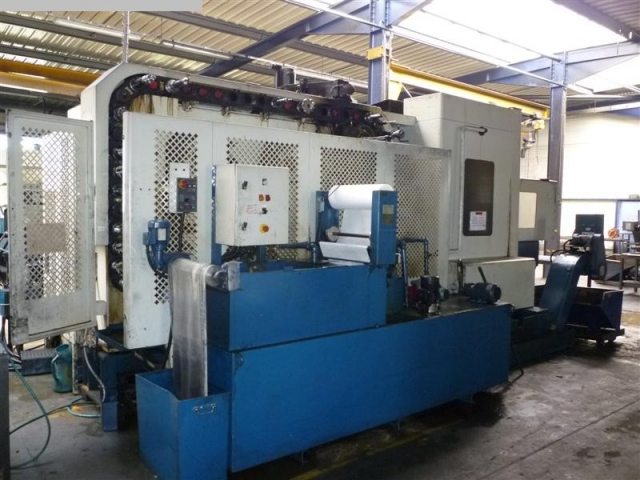

- With Chip conveyor
- With band filter
- Machine are dirty; needed to clean only.
- Our Rajkot Warehouse address:
Patel Technomation Pvt. Ltd.
Railway crossing OPP. Parin Furniture, Rajkot ,Gondal NH8B,
Near Kotharia Solvent, Kotharia ,Rajkot-360004, Gujarat , India
Phone : 0091-281-2782233 ; FAX: 0091-281-2782033
Contat person: Mr. Dipak Patel ( Moblie: 09898 842566)
