Details :
| Stock No | 1133-V163 |

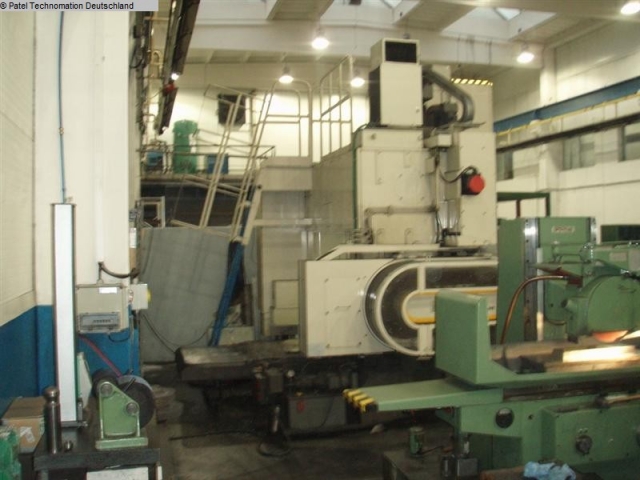

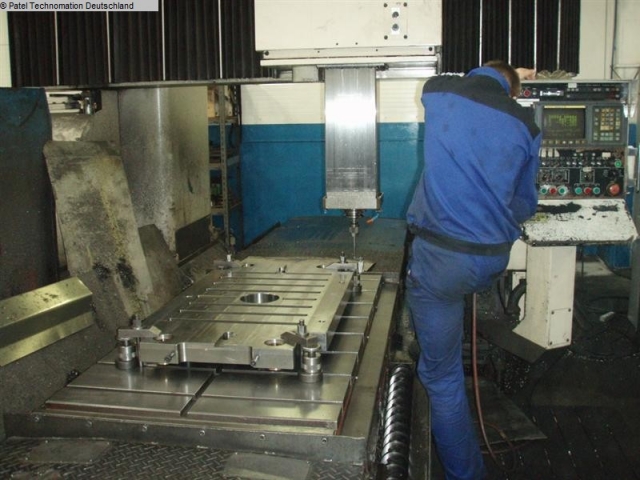

| Machinetype | Machining Center - Double Column-Vert |
| Make | MITSUBISHI |
| Type | M-VB16A |
| Newin | 1989 |
| Control | CNC |
| Location | India - Rajkot |
| Country of origin | Japan |
| Term of delivery | at Intimidate |
| Quotation | Free loaded in Container/Flat |
| Price | Auf Anfrage lkR |
Technical Details :
| x-travel | 2200 mm |
| y-travel | 1600 mm |
| z-travel | 950 mm |
| control | Fanuc 15M |
| distance between columns | 1600 mm |
| spindle turning speed range | 20-4000 U/min |
| spindle taper | 50 BT |
| table load | 8 t |

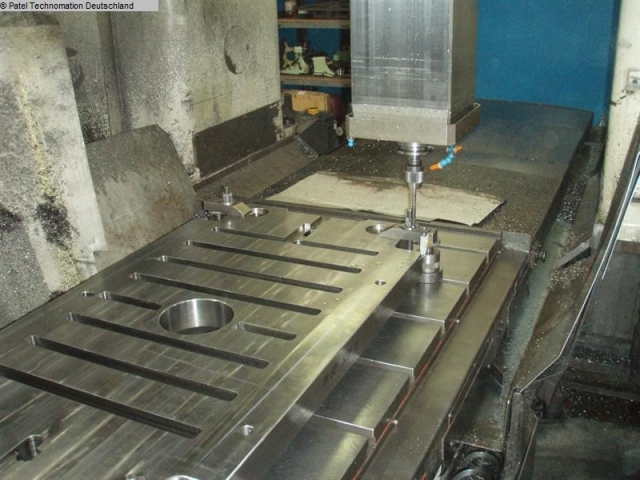

| table surface area | 2000x1000 mm |
| Ram size: square type | 250x250 mm |
| weight of tools max. | 22 kg |
| tool change unit | 24 |
| total power requirement | 16 kW |
| weight of the machine ca. | 25 t |
| dimensions of the machine ca. | 5,5 x 3,5 x 4,2 m |
Other Details :
Fanuc 15M; Table 2000x1000
Precision scale feedback for X, Y and Z axis
Spindle orientation
Spindle nose air-blow system
- Cooler for spindle bearing housing
- Tool locking system
- Chip conveyor parallel to table movements: Coil type, both sides
