Details :

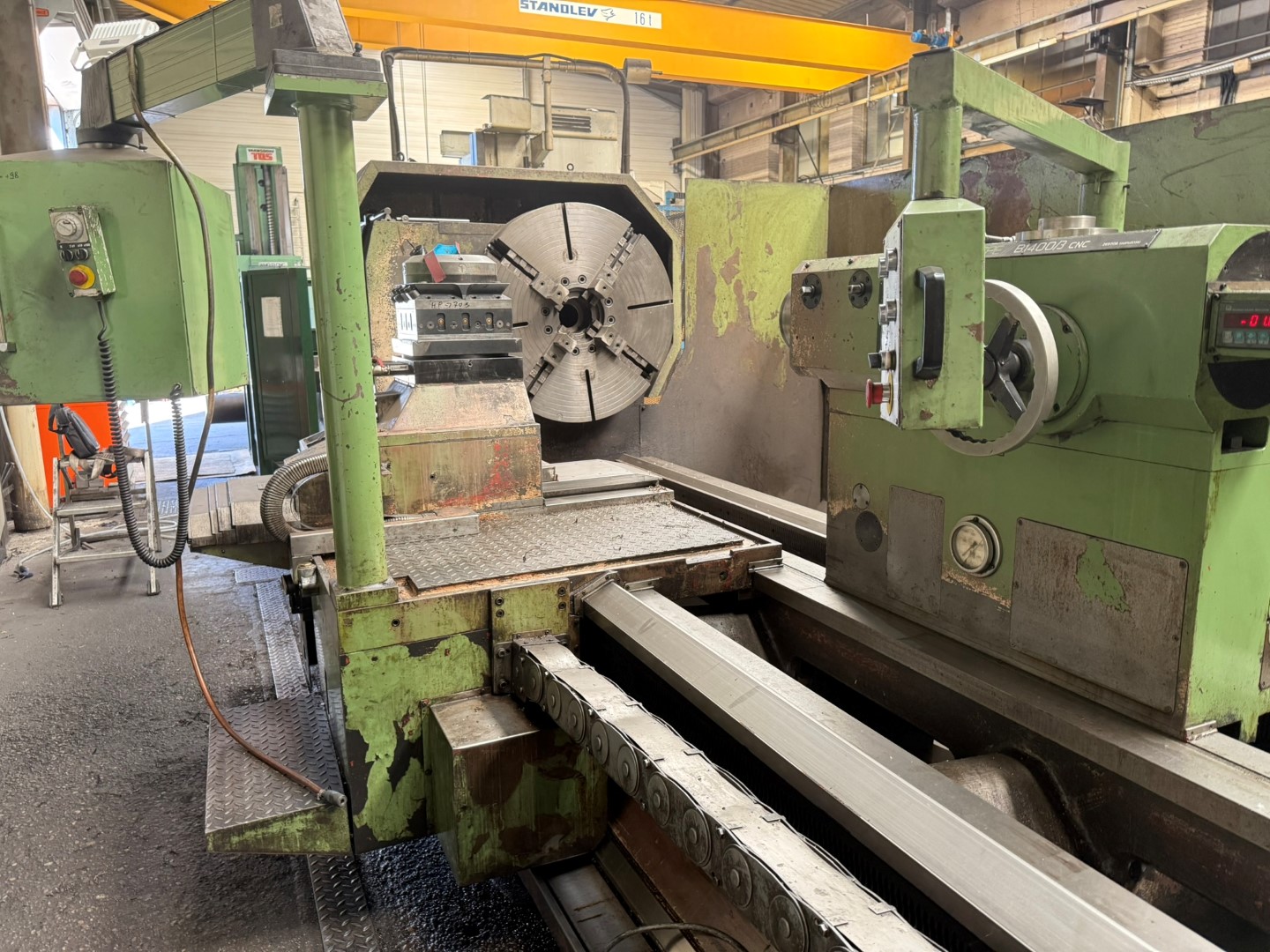

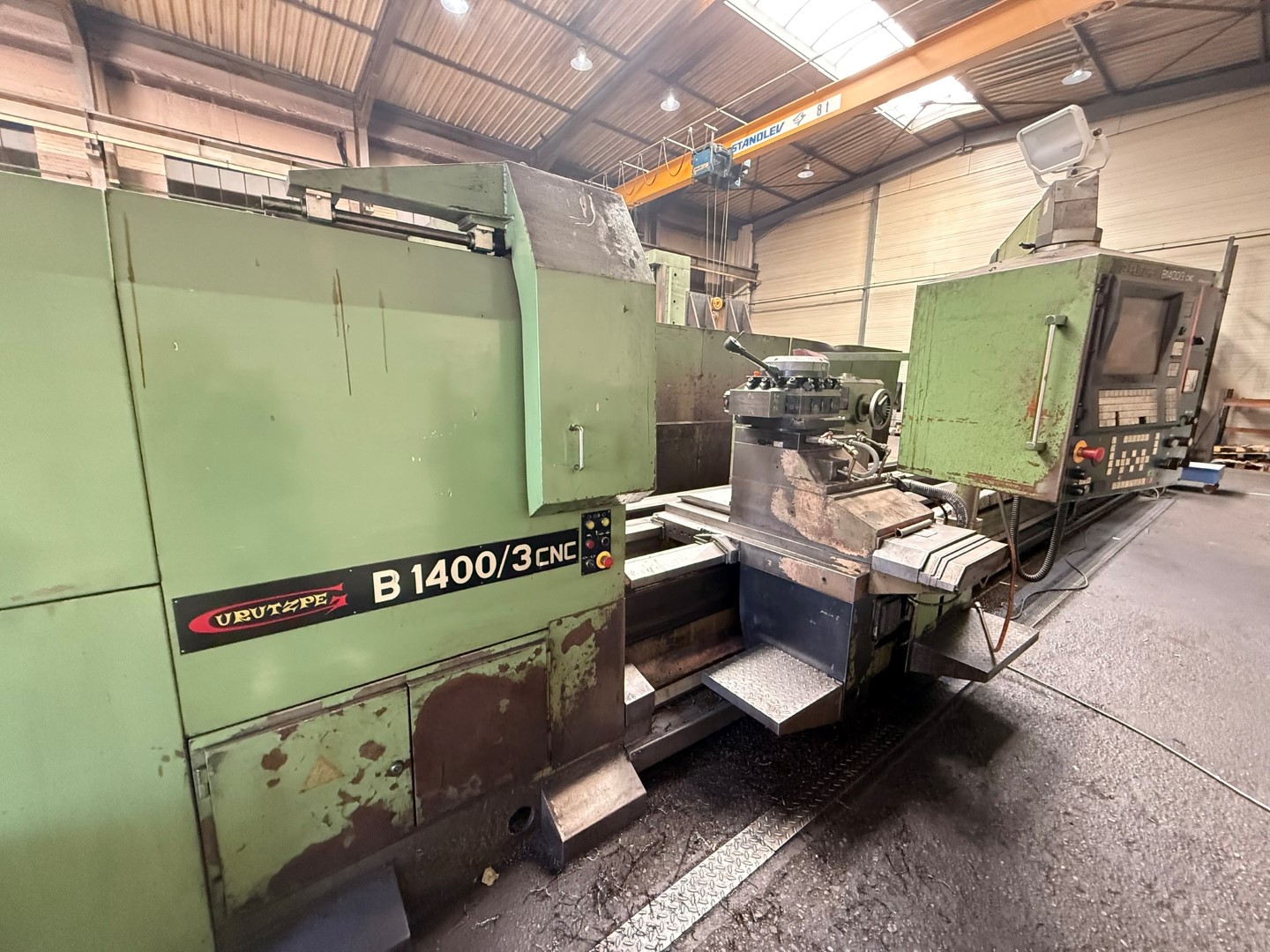

| Make | Gurutzpe - Spain |

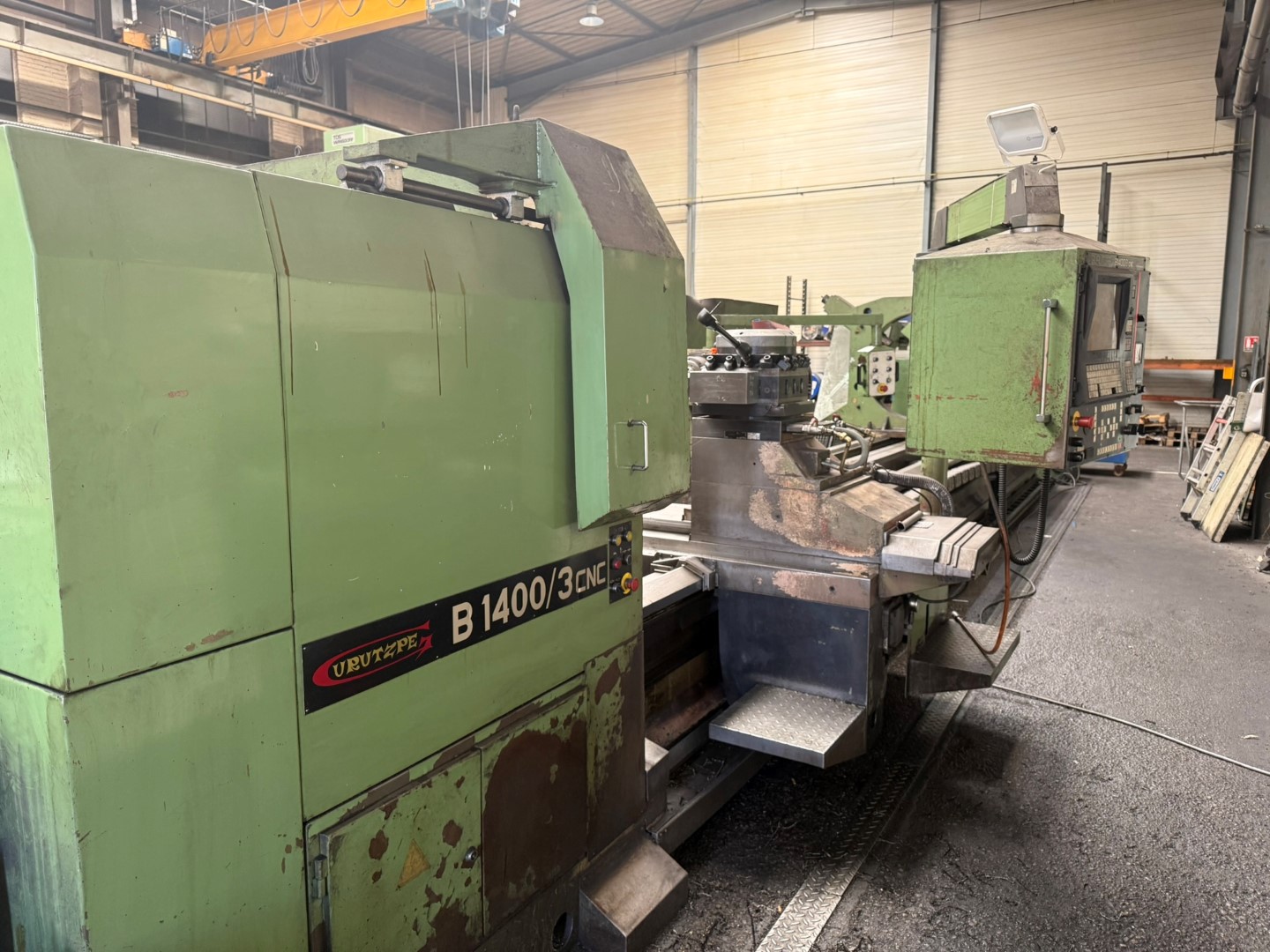

| Type | B 1400/3 x 8000 |
| Year | 1997 |
| Control | NUM |
| Location | Germany |
Technical Details :
| Max. swing dia over bed | 1420 mm |
| Centre height | 710 mm |
| Max. cutting dia over cross slide | 1150 mm |

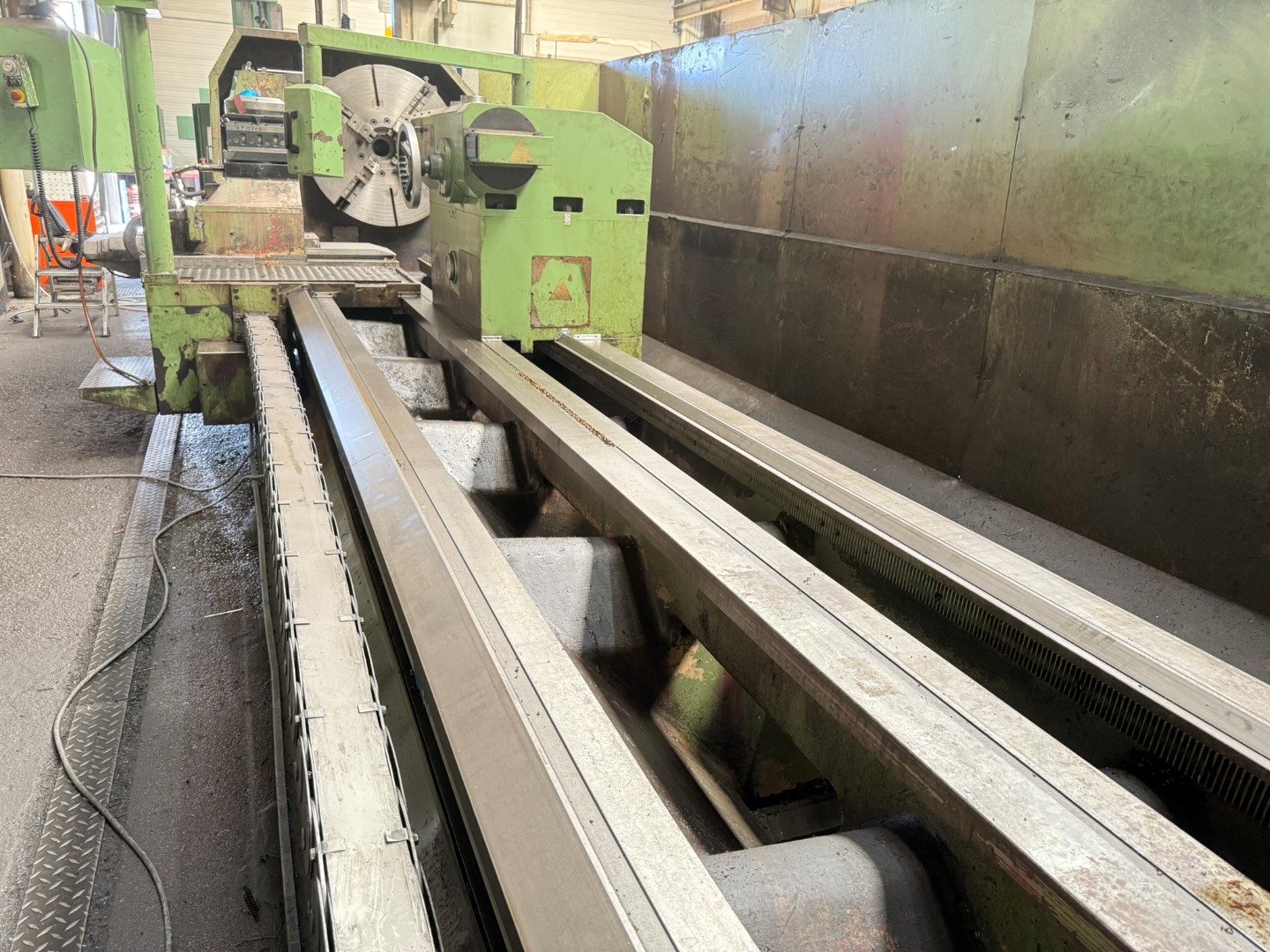

| Max. turning length | 8000 mm |
| Chuck spindle power | 75 HP |

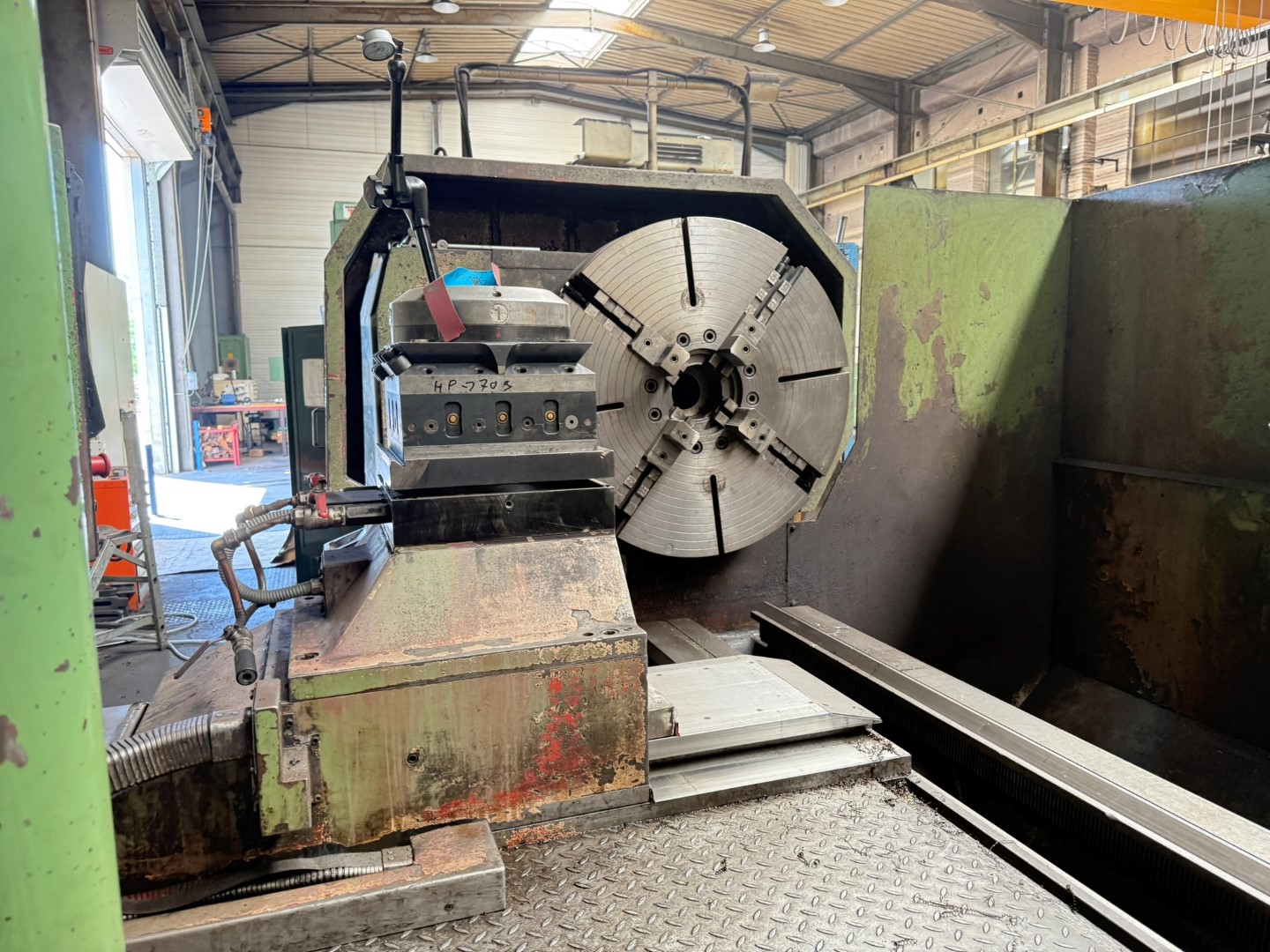

| Chuck speed | up to 600 rpm (4 step gearbox) |
| Chuck torque | 16000 NM |
| Rapid traverse X/Z | 5000 mm/min |
| X travel | 850 mm |
| Z travel | 8000 mm |
| Max. workpiece weight without steadies | 14000 Kg |
| with 1 steady | 17000 Kg |
| with 2 steadies | 19000 Kg |
Other Details :
Machine equipped with:

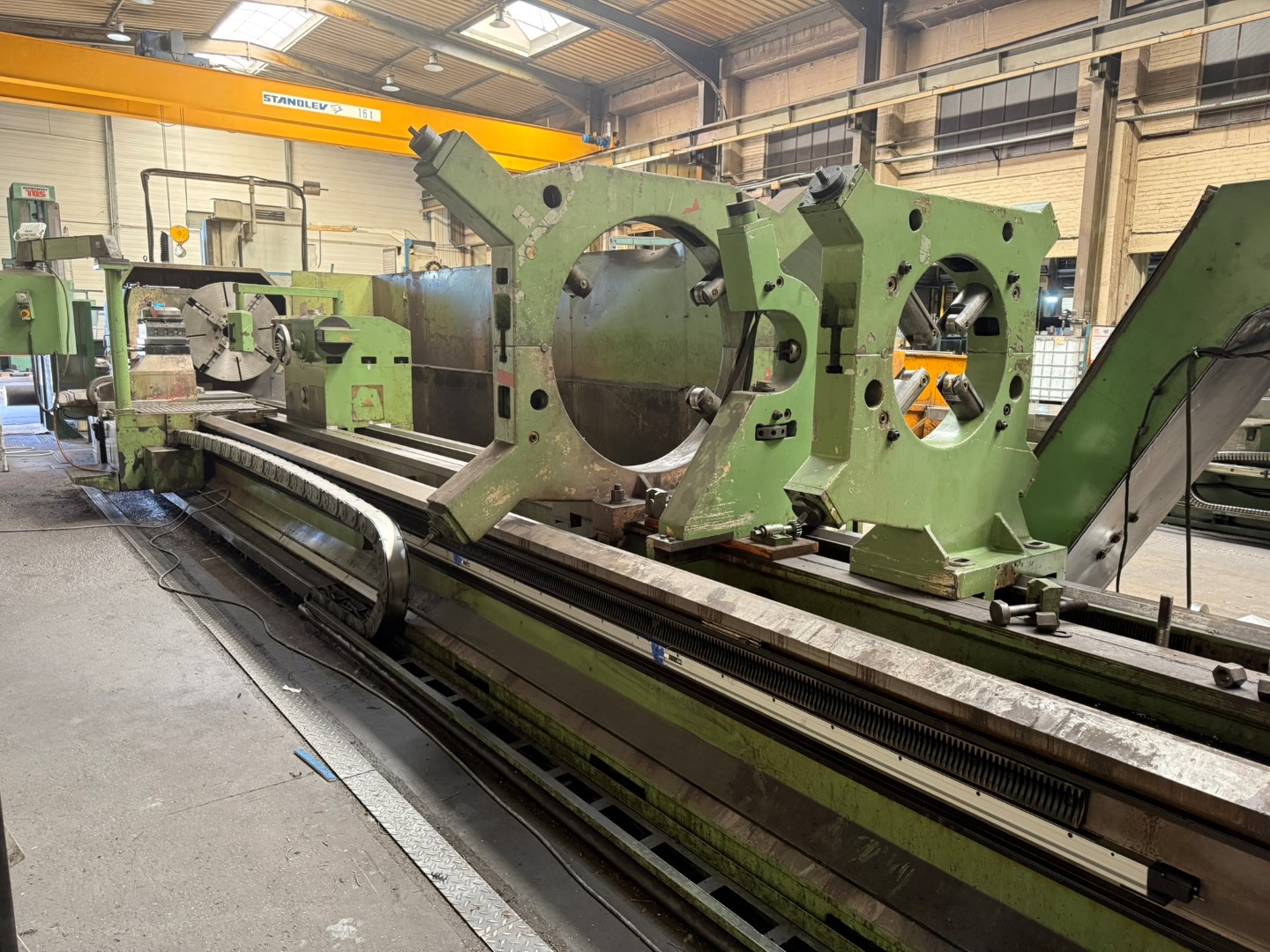

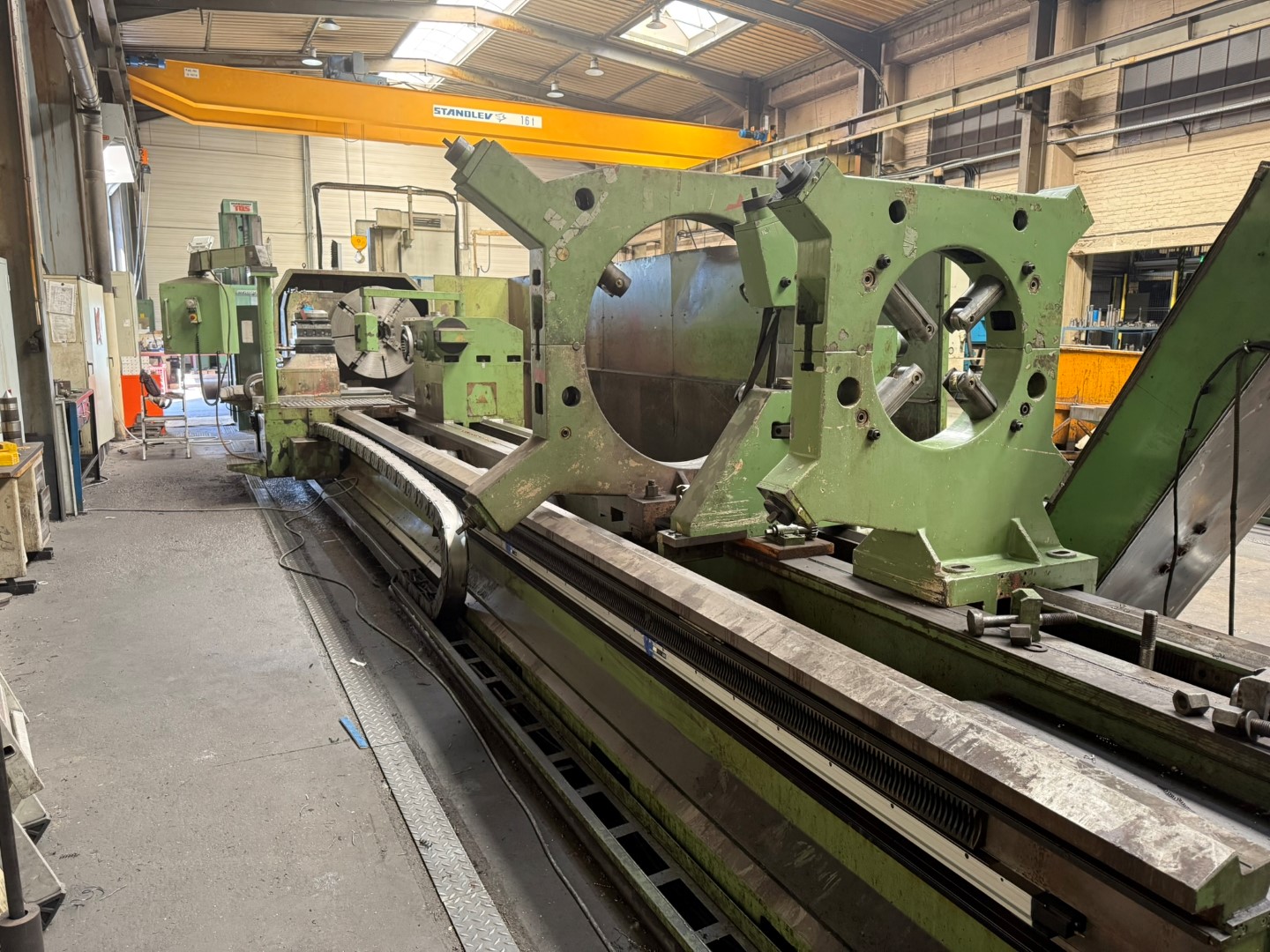

- 1x following steady rest

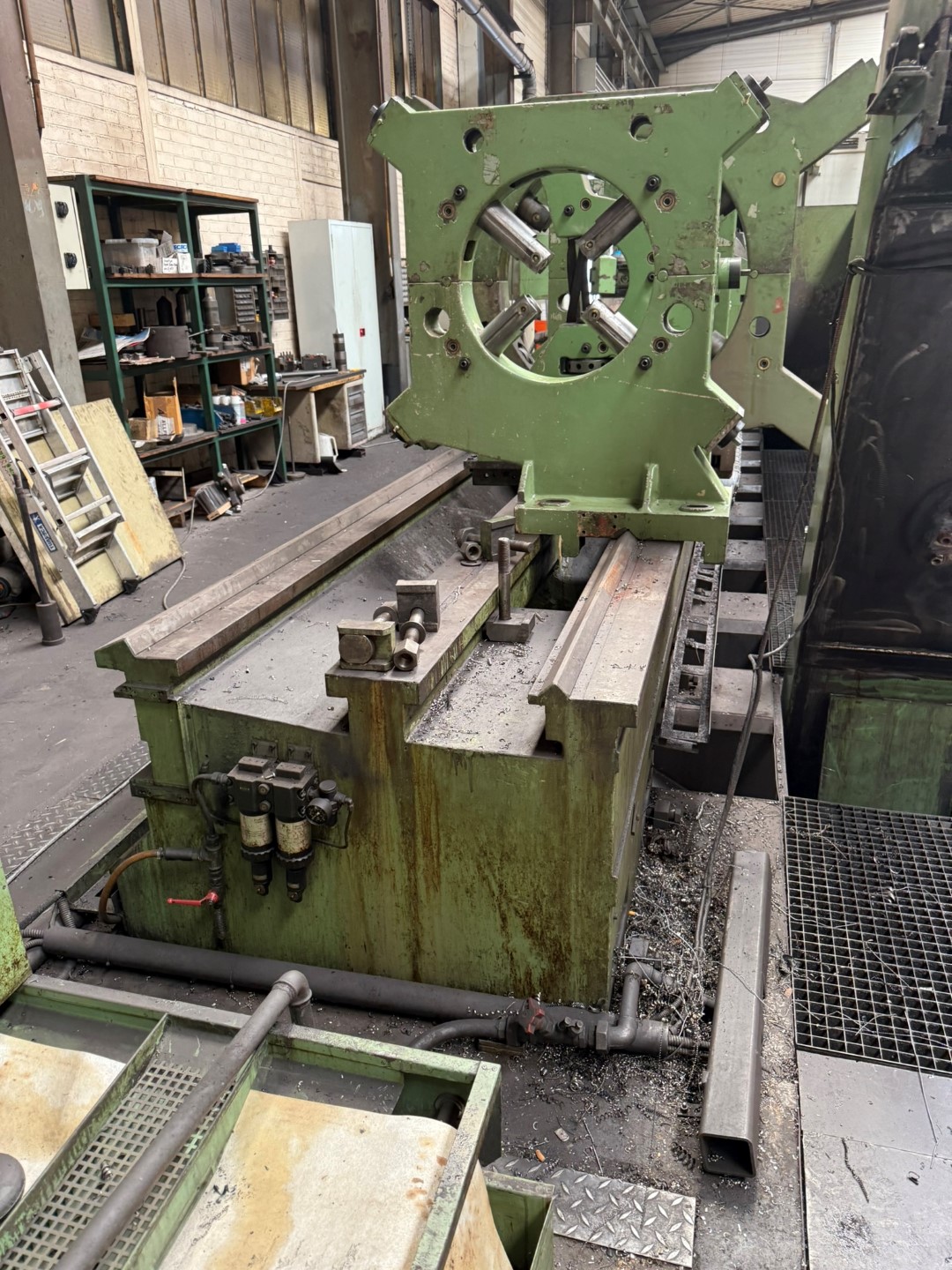

- 2 x fix steady rests

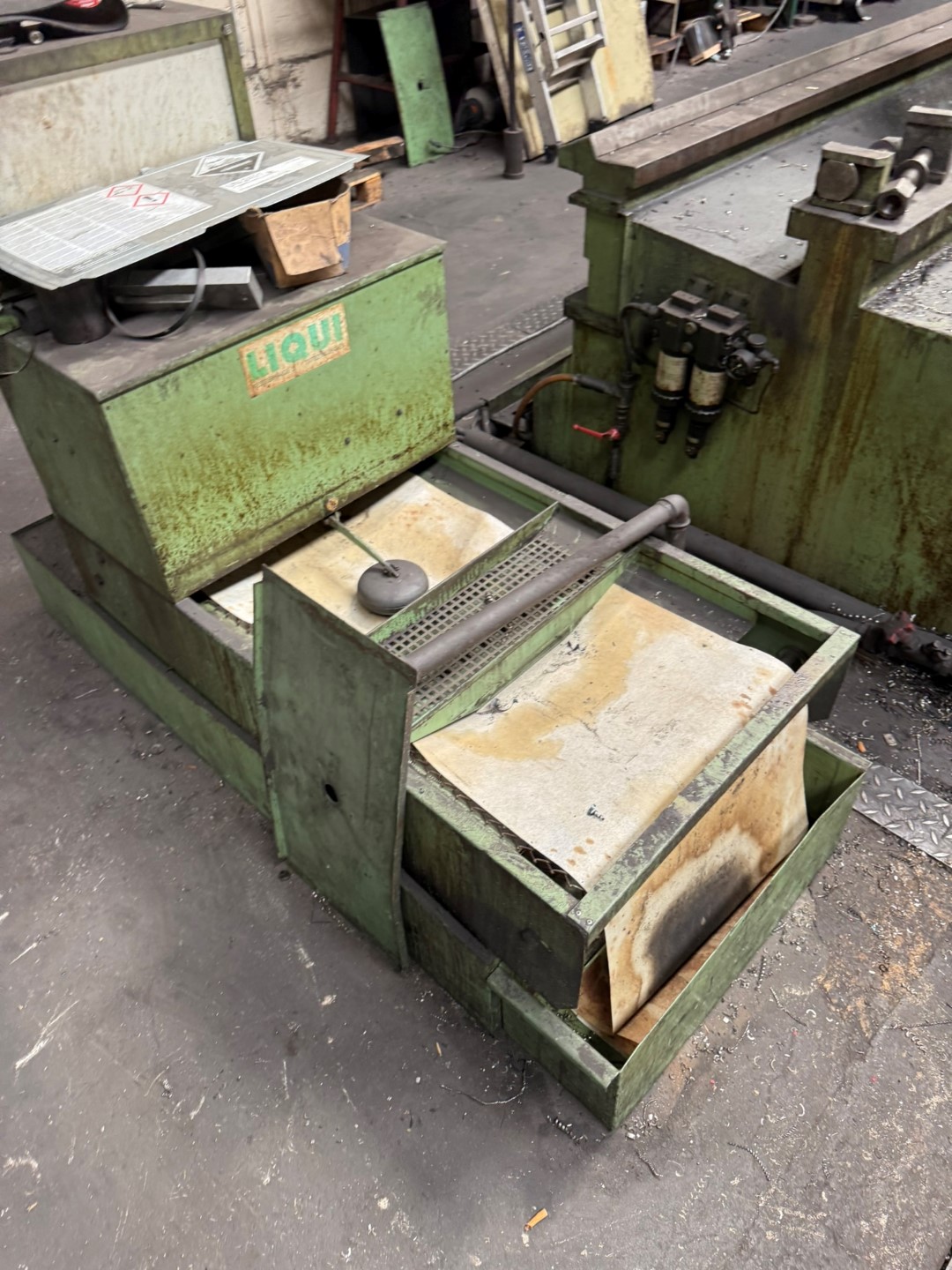

- 1 x chip conveyor
Machine working video: https://www.youtube.com/watch?v=Tebw_NK_xOc
