Details :
Make: Kolb
Type: KBN 60

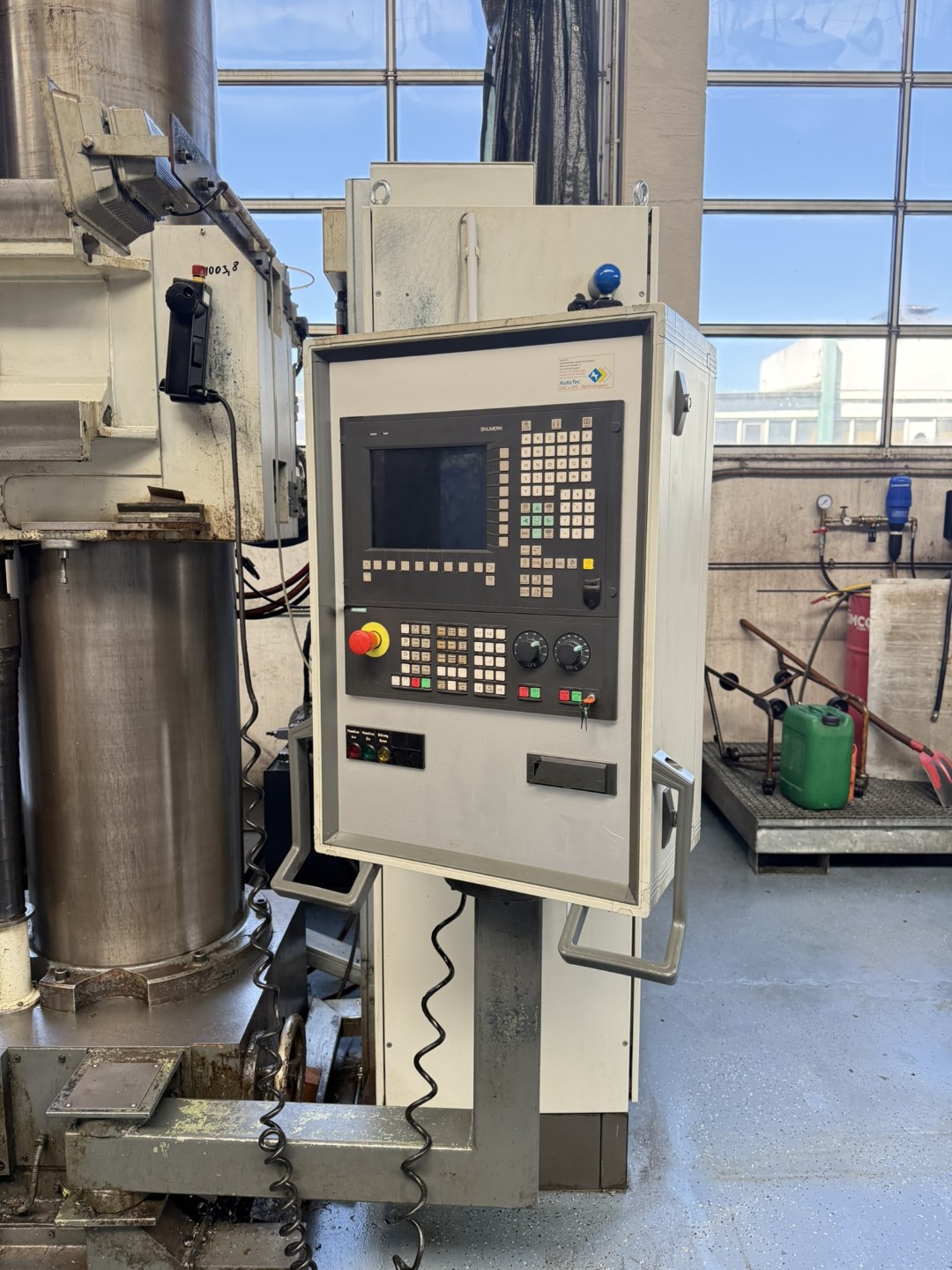

Control: Siemens 840D

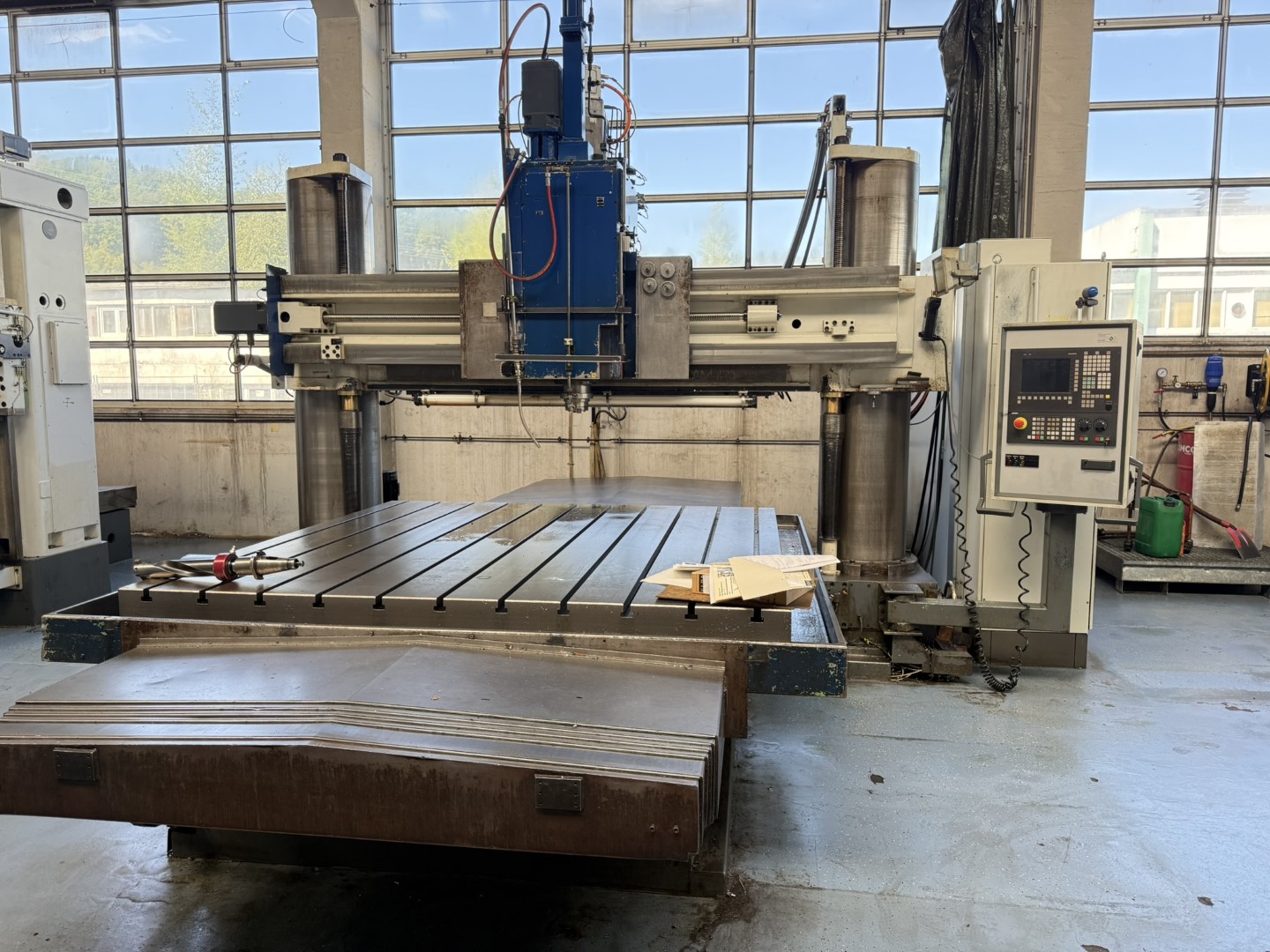

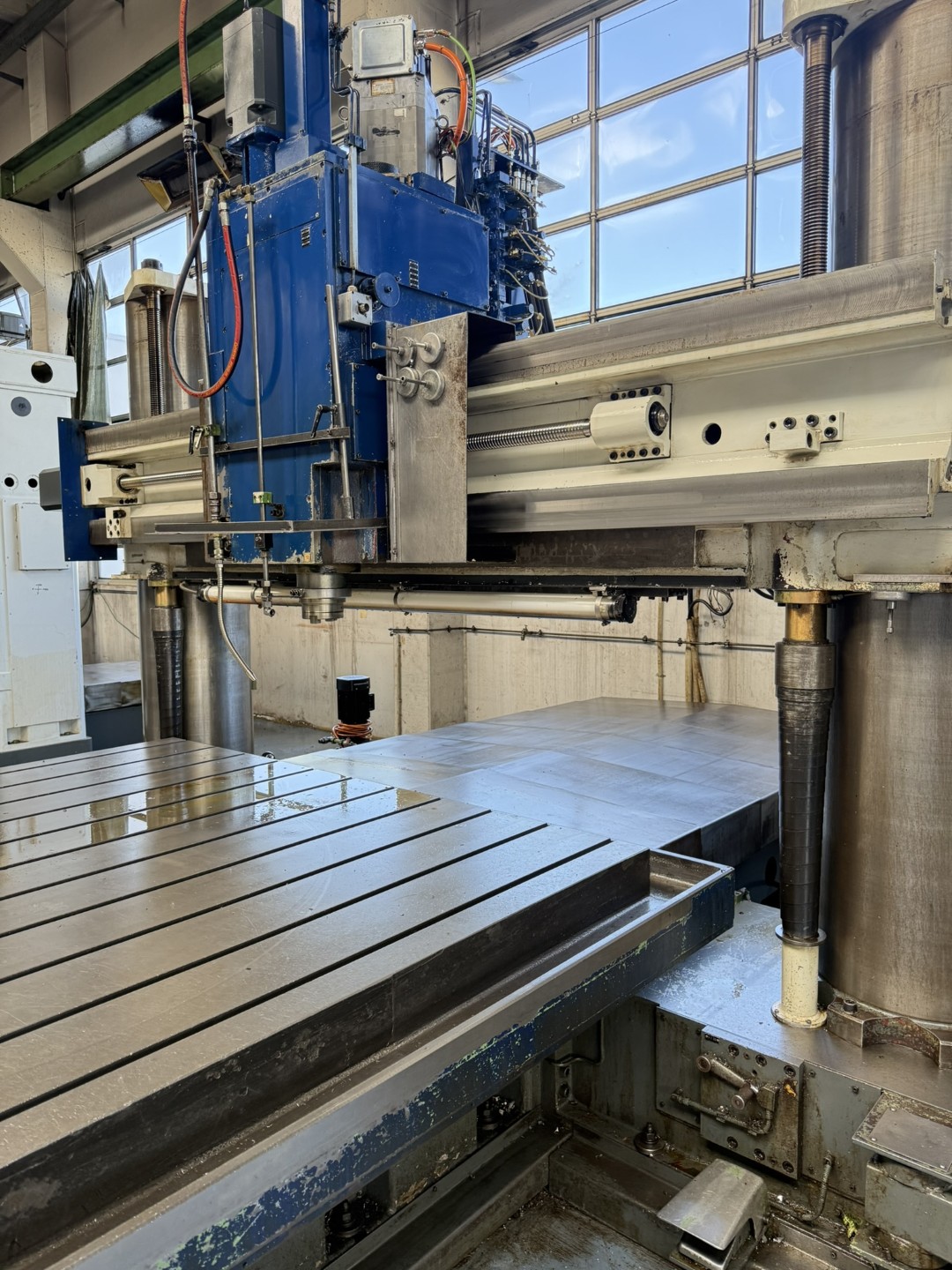

CNC double column milling and drilling machine.
Technical Details :
- Control system: Siemens 840-D
- X-axis travel: 2000 mm
- Y-axis travel: 2000 mm
- Z-axis travel: 500 mm
- Distance between columns: 2700 mm
- Max. working height: 1100 mm

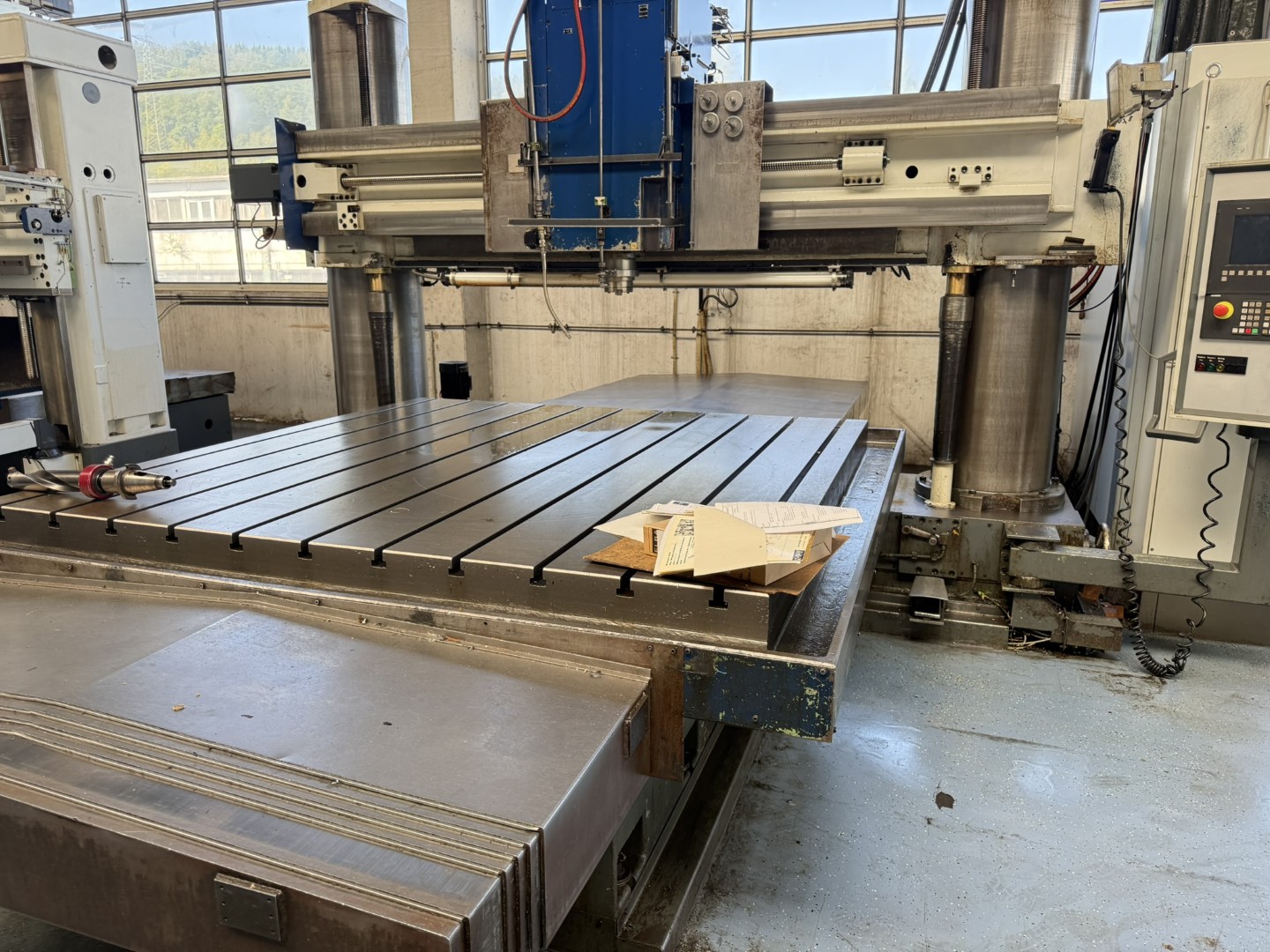

- Table: 2250 x 2000 mm
- Workpiece weight: 10 tonnes
- Spindle power: 24 kW
- Spindle speed: 2250 rpm
- Tool holder: SK 50
