Details :
Make: Juaristi (Spain)
Model: TS 5
Year: 2009

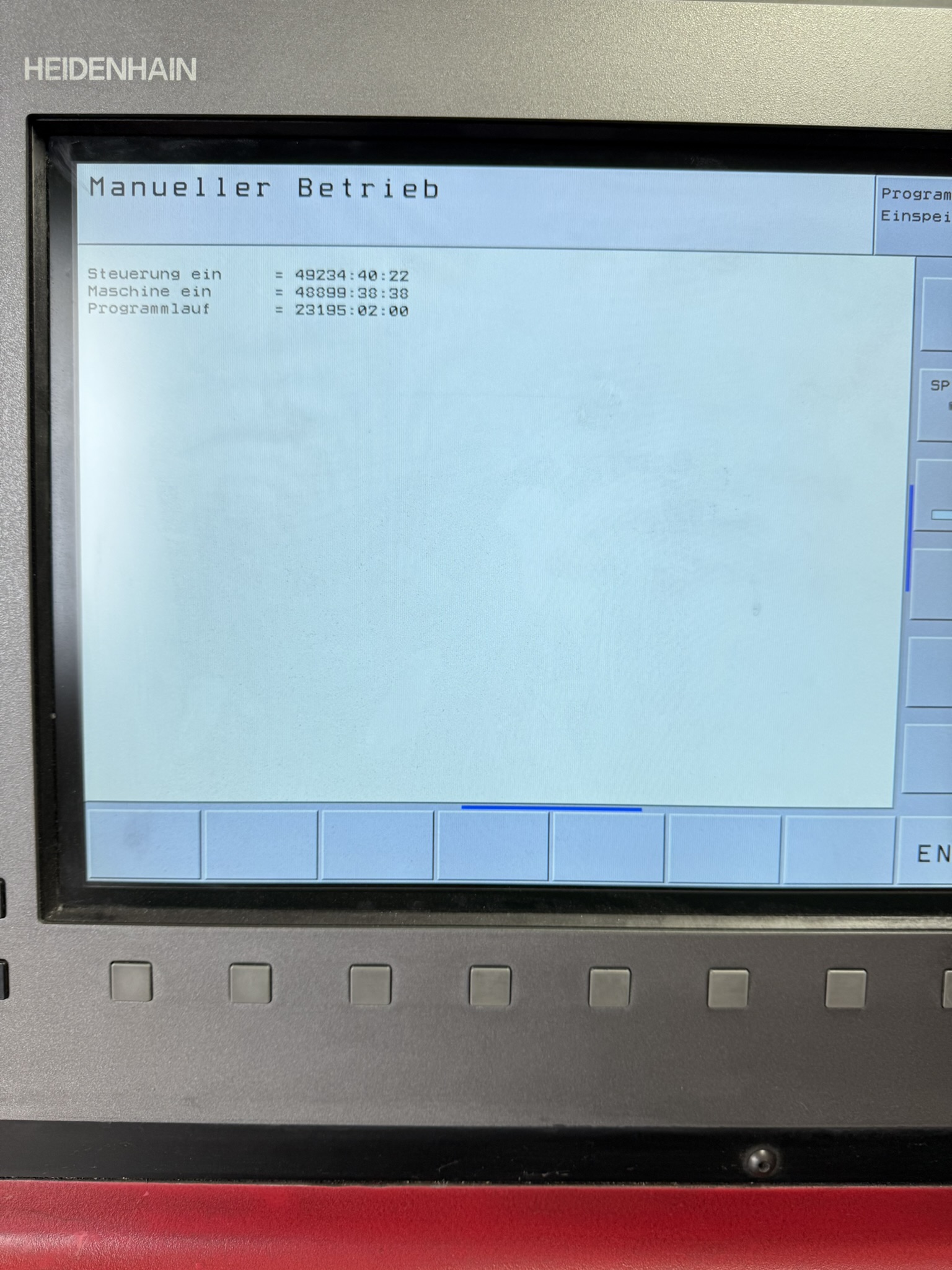

Control: Heidenhain iTNC 530

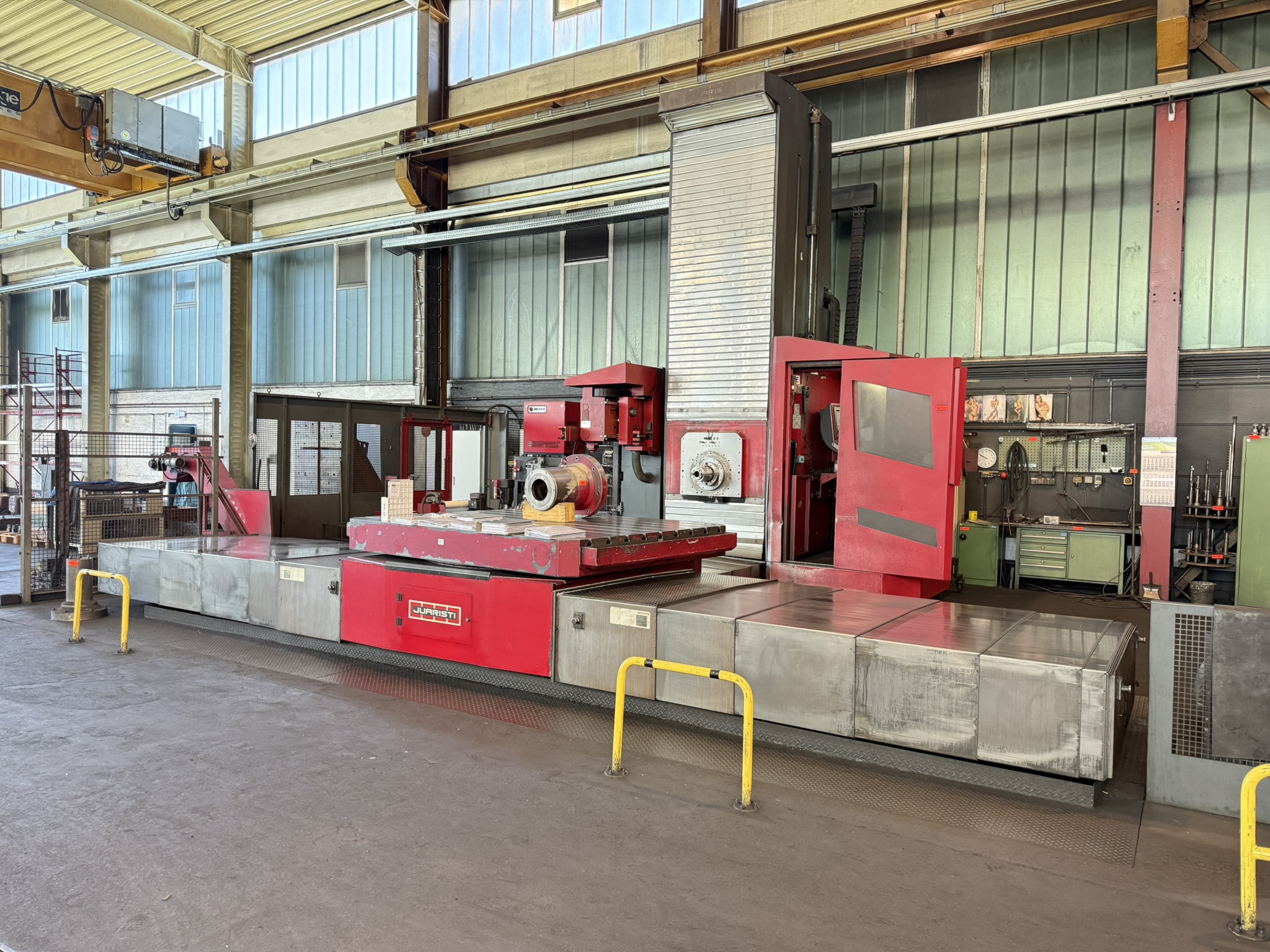

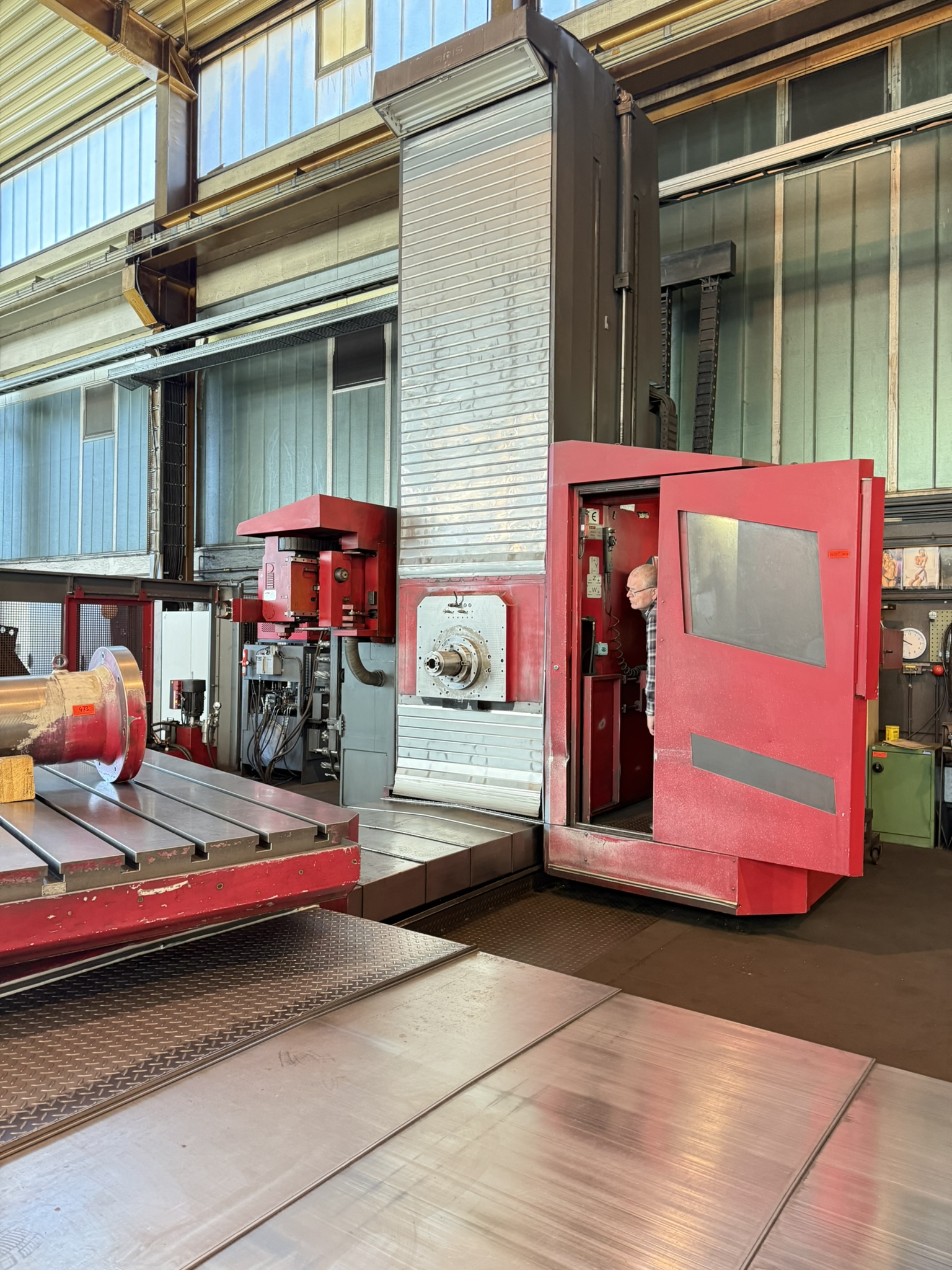

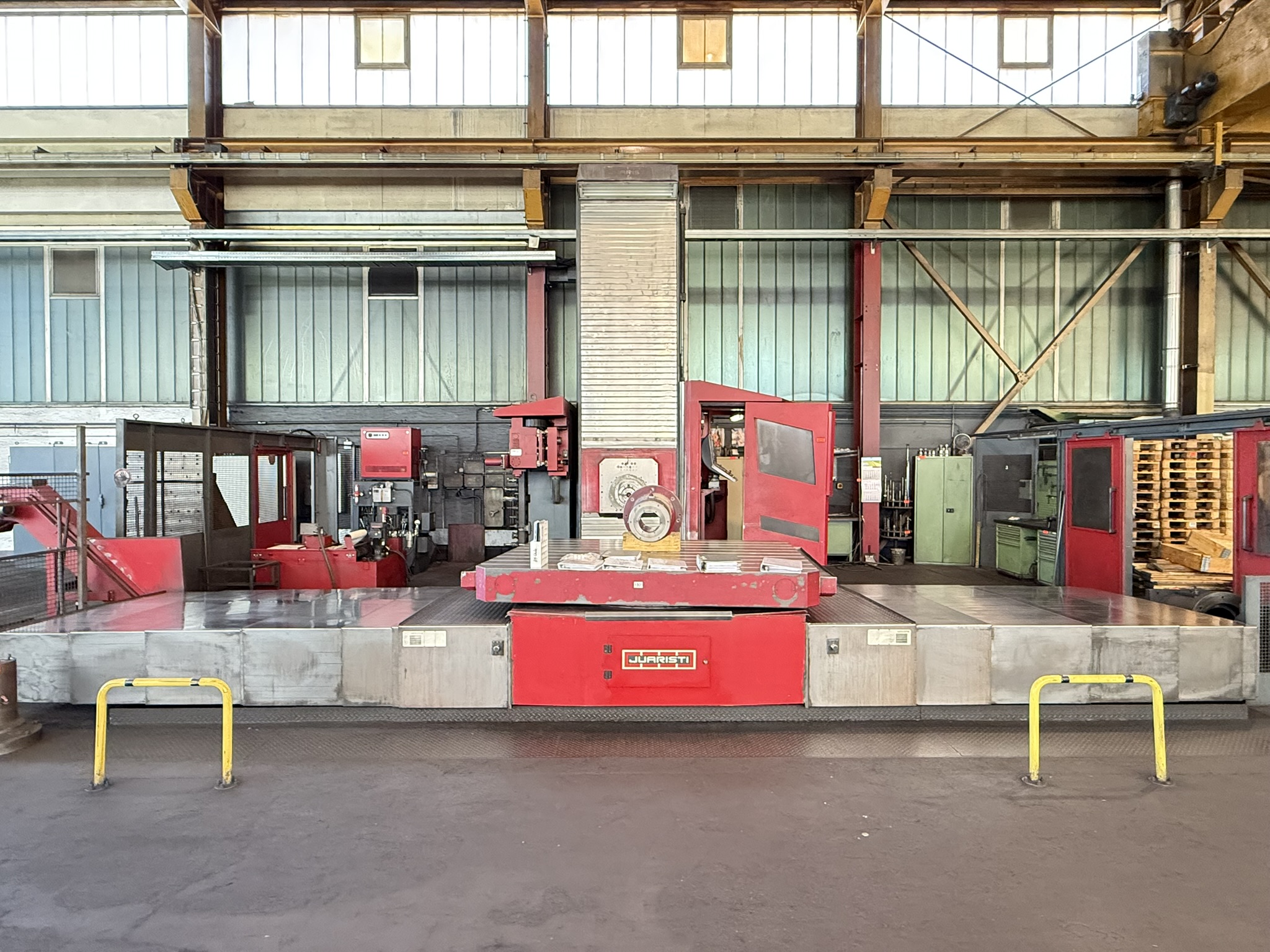

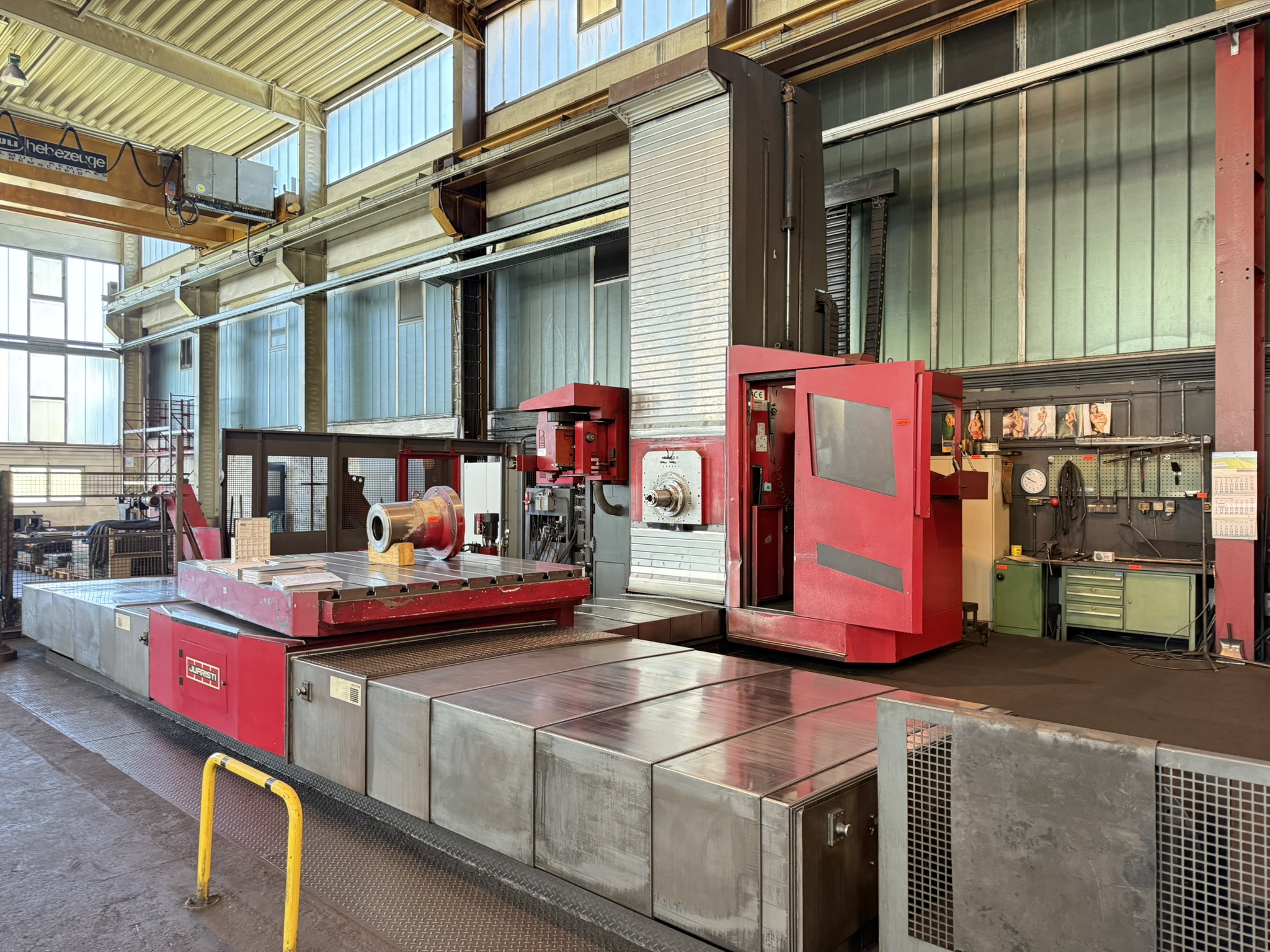

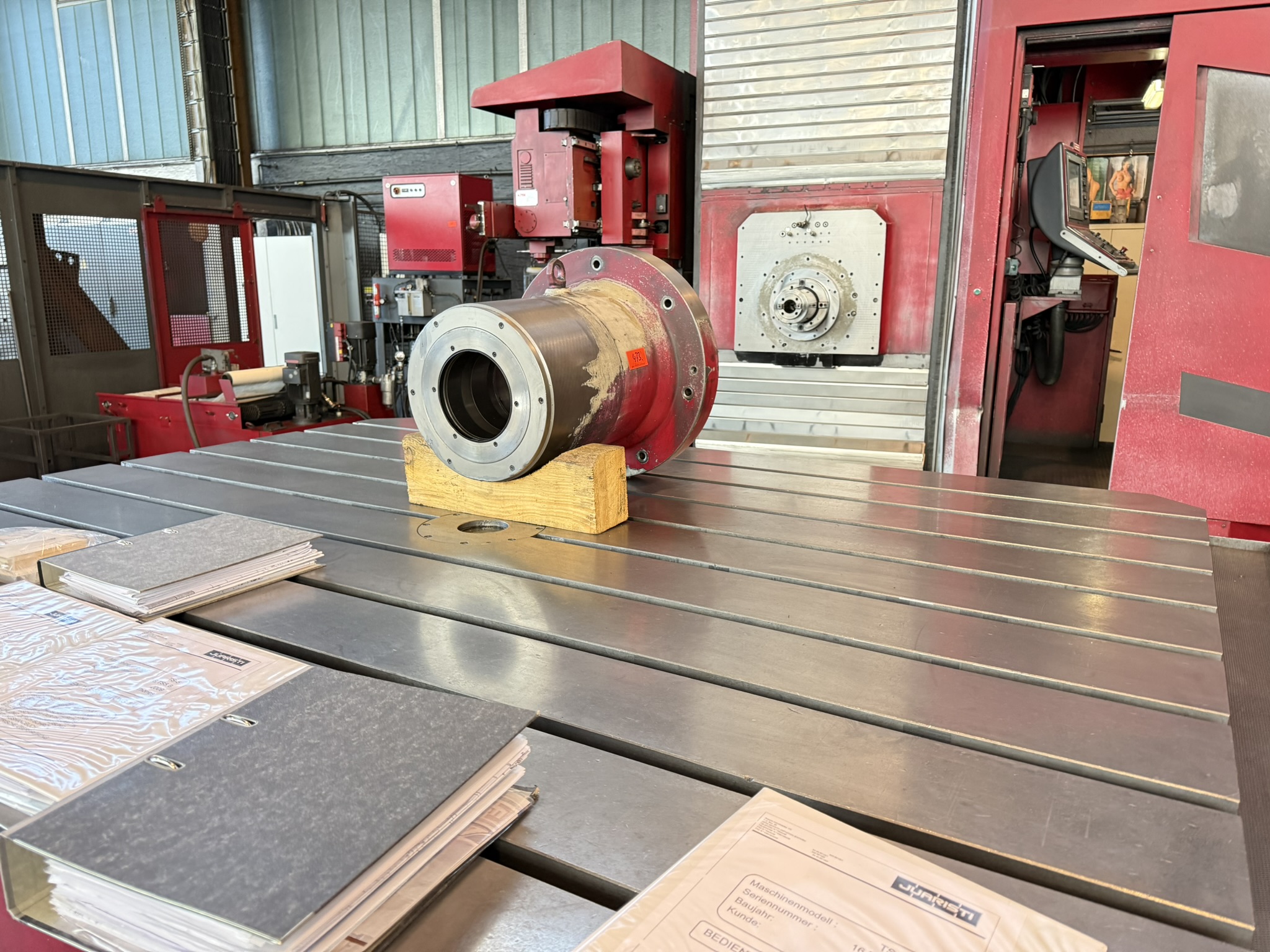

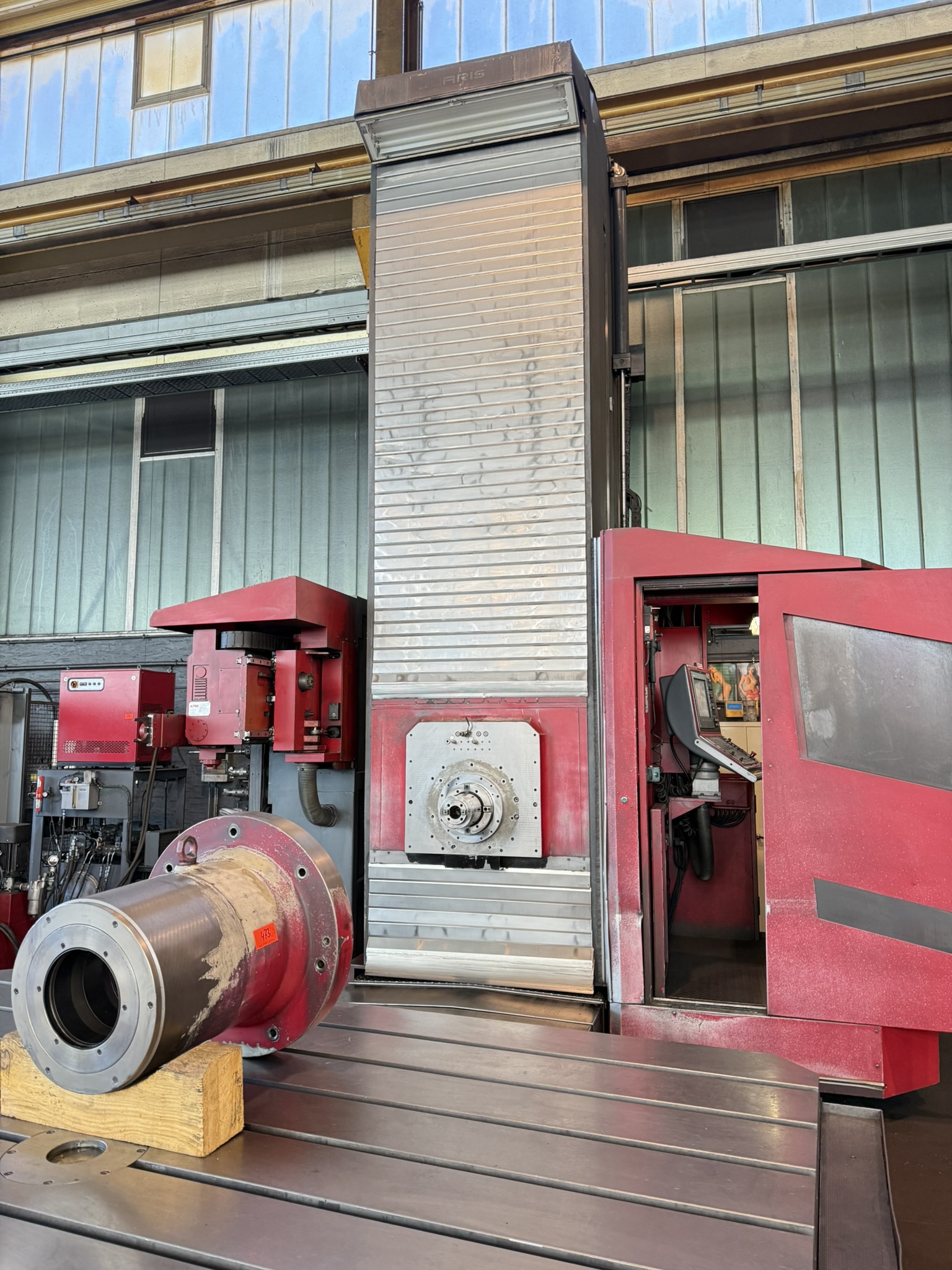

Excellent condition CNC Table type boring machine.
Technical Details :

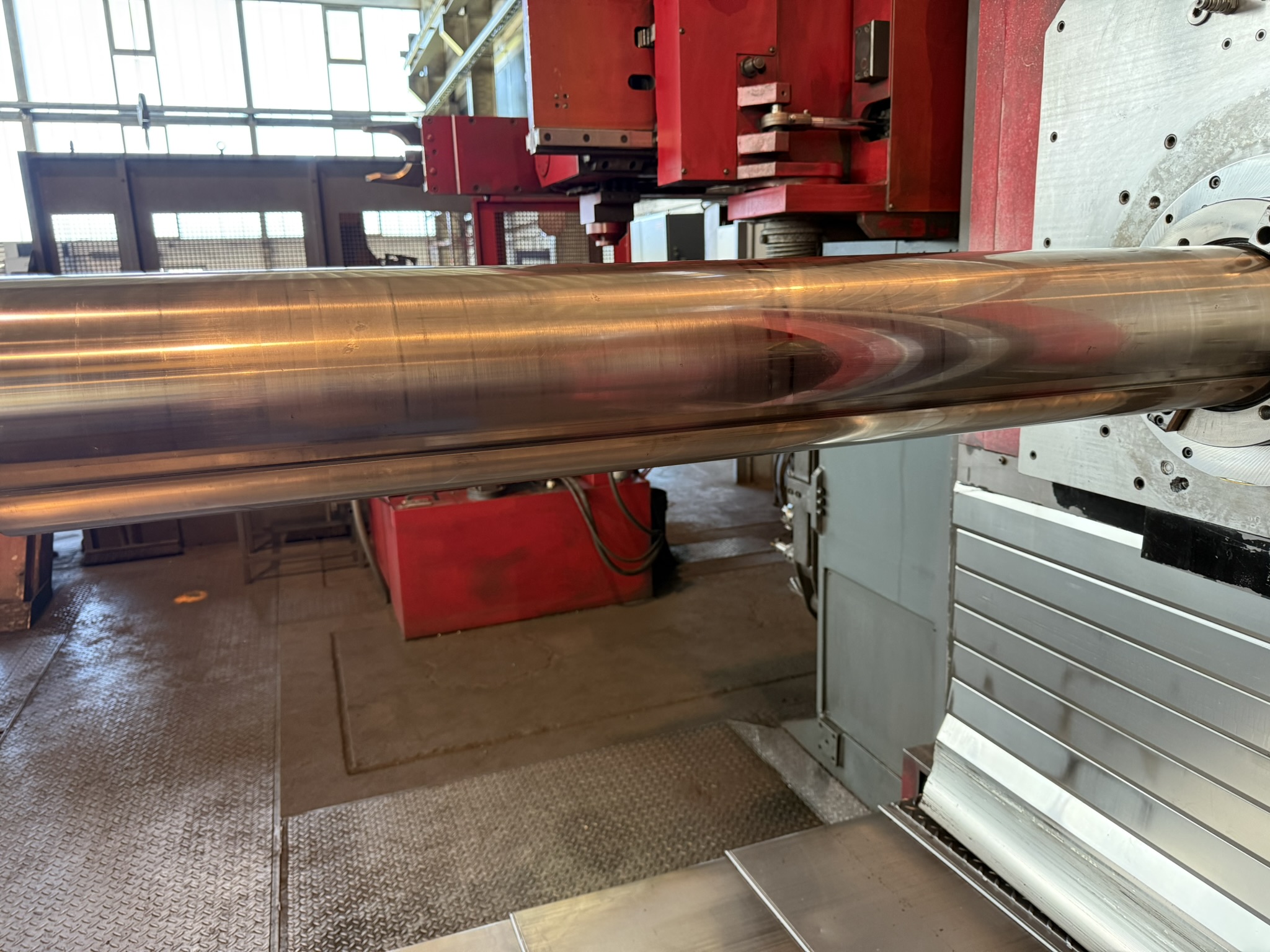

Spindle
- Diameter: 180 mm
- Power: 51 kW
- Speed: 2000 rpm (2-step gearbox)
- Torque: 2668 Nm
- Spindle Support length: 550 mm
- Spindle Through Coolant
Travels
- X: 5000 mm
- Y: 3500 mm
- Z: 2350 mm
- W: 1000 mm (quill permanently 200 mm out at full travel — total reach 1200 mm)

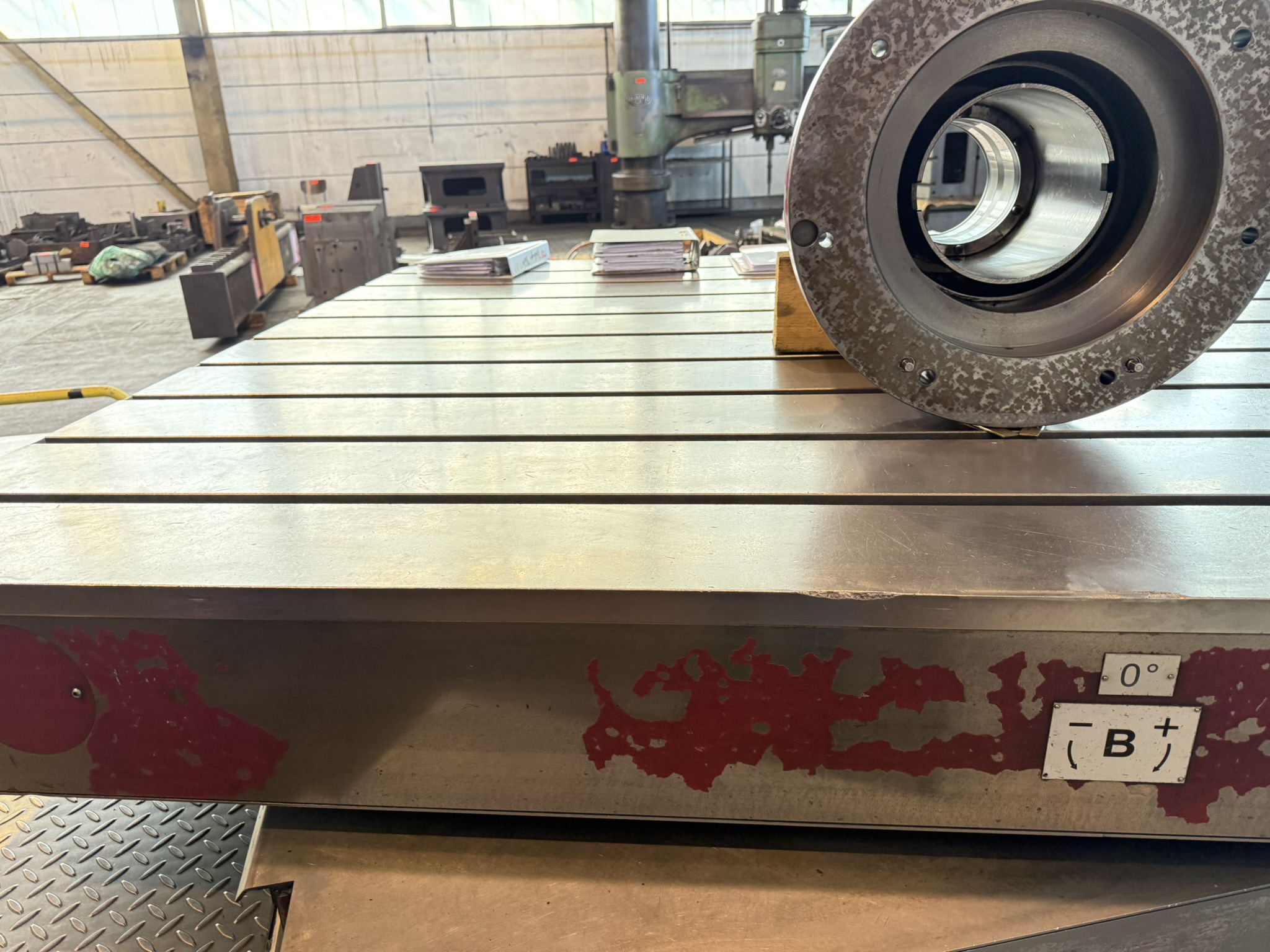

Table
- Size: 2000 × 2500 mm
- Load capacity: 28 tonnes
- Hydrostatic
- B-axis positioning: 0.001° (double-pinion, zero backlash)
Other

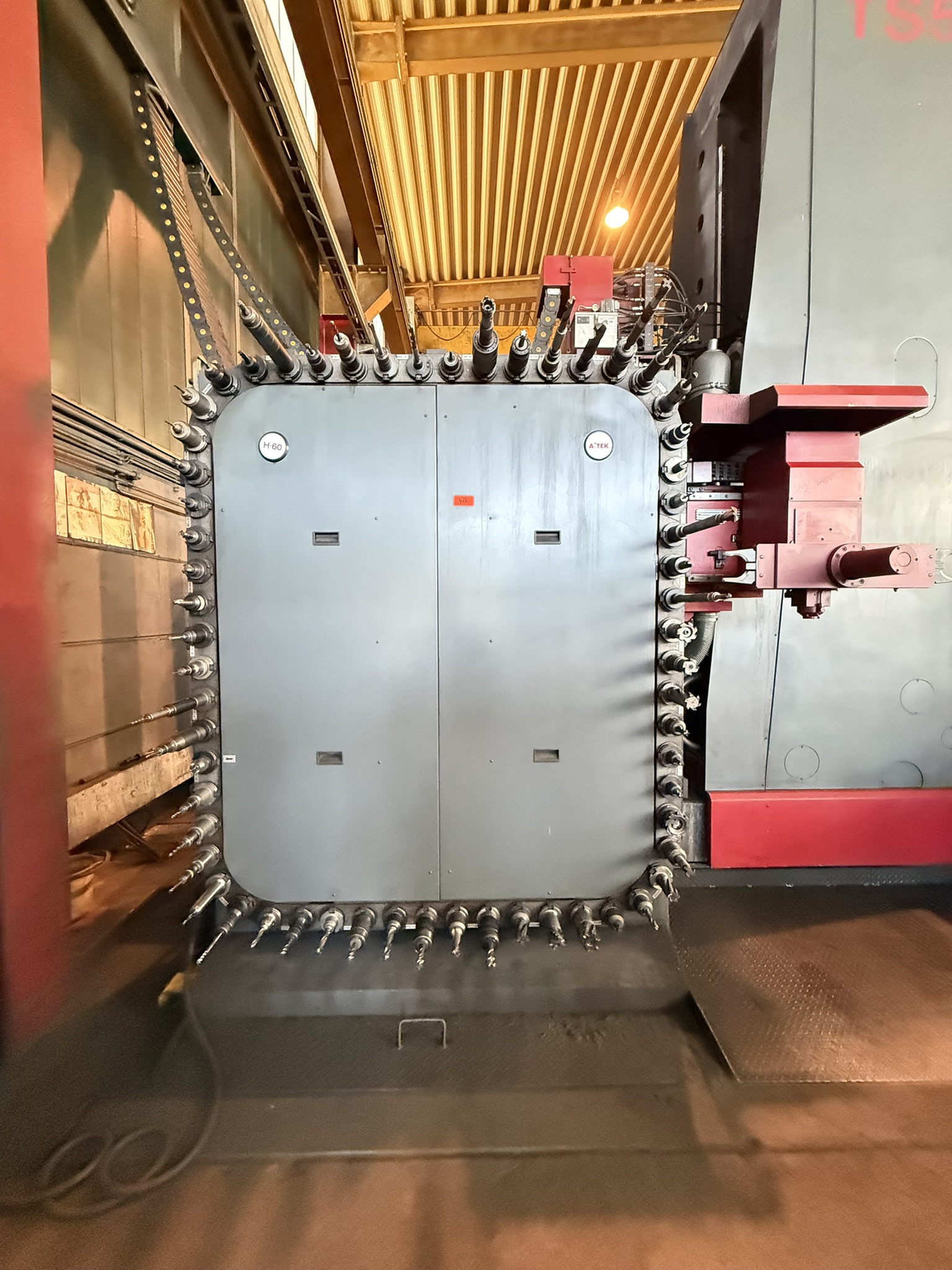

- Tool changer: 60 positions
- Siemens axes & spindle motors
- Linear scales on all axes + rotary encoder
- Handwheel HR 410
