Details :
Make: Union Germany
Type: PCR 150
Year: 2009 / 2010

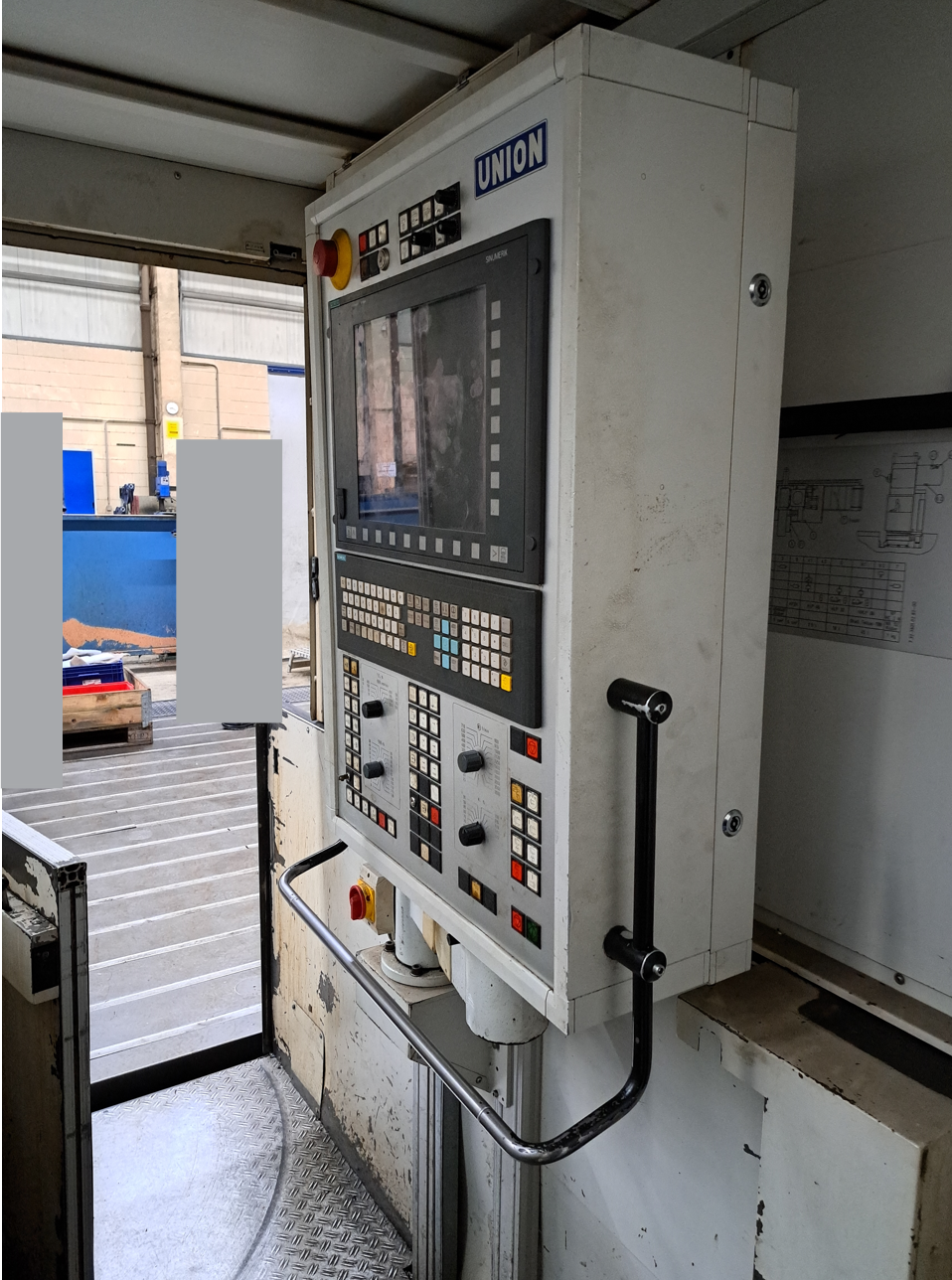

Control: Siemens 840-D
Location: Germany
Machine fully equipped with ATC, spindle through coolant, CNC rotary table, head pick up station with universal head and floor plates.
Technical Details :
- Spindle dia: 150 mm
- X-travel: 8000 mm
- Y-travel: 4000 mm
- Z-travel: 1000 mm
- W-travel: 700 mm
- Spindle power: 46 KW
- Spindle speed: up to 3000 rpm
- Spindle torque: 2096 NM
- Spindle taper: ISO 50
- ATC
- Spindle through coolant
- CNC rotary table 2500 x 2500 mm, V-travel: 2000 mm, 40 Tonnes capacity
- Head pick up station with universal head
- Floor plates 2 pcs. 4000 x 2000 mm each
